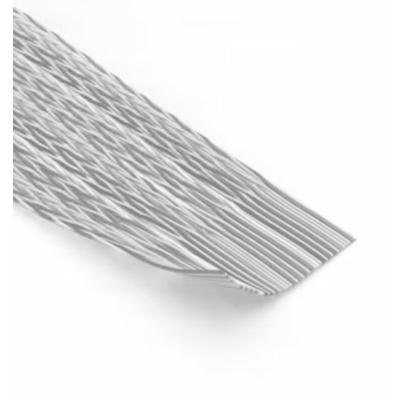

1700-50, 3M 1700 Series Twisted Ribbon Cable, 50-Way, 1.27mm Pitch, 30m Length, Кабель

1118900
Номер производителя: 1700-50Производитель: 3M
Цена за 1 катушку (30 метров)
179513.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

3M Twist & Flat 1.27m Pitch Ribbon Cable - Type 1700

From 3M, this 1700 round ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Features and Benefits

• Wire gauge 28awg, 1.27mm pitch between conductors
• Reduced crosstalk in balanced drive applications
• Wires are colour coded for easy identification
• UL recognised style 50462

Applications

Ribbon cabling is frequently used in computing and in communication applications, and can be used for internal and external wiring in electronic appliances. Twisted ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies

Approvals

UL Recognised

3M Ribbon Cable, Unterminated, PVC Sheath - 1700 Series - 1700-50

Need a handy connector for internal wiring? Choose this ribbon cable from 3M. Its 50 conductors are each made up of seven twisted strands of 36AWG tinned copper wire to provide effective conductivity and efficient signal transfers. As the supple stranded wire is twisted, you can trust the cable is flexible and fit to deliver a long service life. A robust PVC sheath protects the conductors inside from environmental hazards, including moisture, strain and abrasion.

Features & Benefits

• Individual wires are colour-coded for easy identification and quick splicing where needed
• Cuts crosstalk to make it a practical pick for your balanced drive applications

Applications

• Instrumentation
• Robotics systems
• Commercial and industrial computing

What temperatures can I use this product in?

The ribbon cable does its job in a wide operating temperature range from -20°C to +105°C, so it's a safe bet for use in harsh settings.

Approvals

UL 20462

Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment. Colour coded ribbon cable with alternate twisted pair and parallel conductor sections. Twisting of adjacent conductors reduces crosstalk whilst the flat sections at regular intervals still facilitate easy termination.

Техническая спецификация
pdf1700 Series Twisted Pair Flat Cable Data Sheet
pdfUL E42769
pdfContains SVHC - Trixylyl phosphate - CAS No. 25155-23-1
pdfCable Selection Guide
pdfBrochure - Cables and Accessories Selection Guide
Американский размер проводов:
28 AWG
Волновое сопротивление:
122 Ом
Диапазон рабочих температур:
-20 → +80 °C
Длина:
30м
Ёмкость:
52.2pF/m
Жилы:
7/36
Количество нитей:
7
Количество путей:
50
Номинальное напряжение:
300 В
Обжатый/Необжатый:
Unterminated
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Размеры нитей:
36 AWG
Серия:
1700
Тип ленточного кабеля:
Twisted
Тип проводника:
Stranded
Цвет оболочки:
Многоцветный
Шаг:
1.27мм
Ширина:
63.5 мм
Экранированный/неэкранированный:
Unscreened
