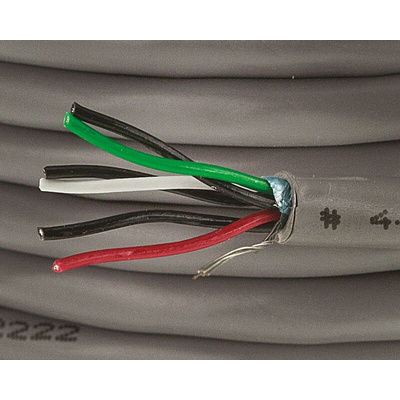

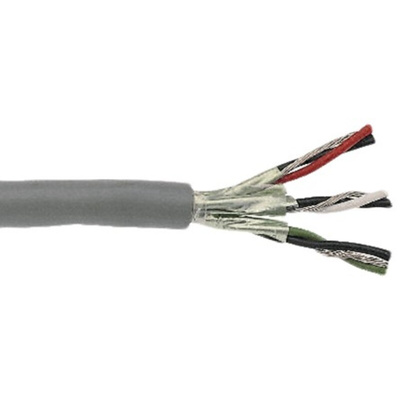

5473C SL005, Alpha Wire Twisted Pair Data Cable, 3 Pairs, 0.23 mm², 6 Cores, 24 AWG, Screened, 30m, Grey Sheath, Кабель

Belden Alpha Wire Grey 3-Pair Screened Data Cable, 24AWG - 5473C

For effective data transmission in your communication equipment, choose this twisted pair data cable from Belden's Alpha Wire range. The cable is an F/UTP type, which means its conductors are twisted in pairs and covered in aluminium/Mylar foil to prevent crosstalk and electromagnetic interference (EMI). Its copper conductors ensure a stable and reliable connection and PVC insulation protects you against electric shocks. The cable's outer sheath is also made of PVC, which has reliable resistance to impact, so it's suitable for use in demanding industrial environments.

Features & Benefits

• Low characteristic impedance of 76Ω for speedy signal transmission
• Low mutual capacitance of 25pF/ft (picofarads per foot) for high integrity signals
• Compact outer diameter of 5.69mm for space efficiency in small enclosures

Applications

• Control and instrumentation systems
• CAD (computer-aided design) setups
• POS (point-of-sale) devices

What's the temperature threshold of this data cable?

This cable has an operating temperature range of -20°C to +80°C, so it's suitable for use in a wide range of demanding environments.

Approvals

UL2464 Type CM
