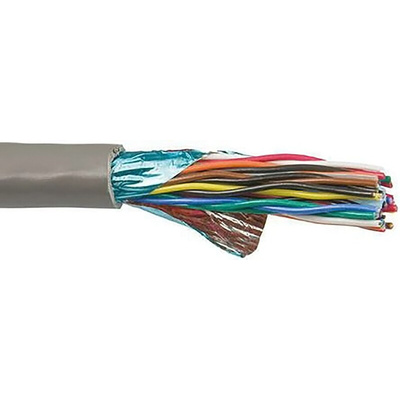

5480C SL005, Alpha Wire Twisted Pair Data Cable, 10 Pairs, 0.23 mm², 20 Cores, 24 AWG, Screened, 30m, Grey Sheath, Кабель

Belden Alpha Wire Data Cable, 74lbs Maximum Pull Tension, +80°C Maximum Operating Temperature - Alpha Essentials Series - 5480C SL005

Seamlessly send information between your devices with this data cable from Belden's Alpha Wire range. It has 20 cores twisted in pairs to prevent crosstalk and EMI, giving you noiseless signal transmission. A reel length of 30m means you'll have plenty of supply to complete large jobs or cut down to size. The cable's PVC insulation is resistant to abrasion and oils, making it a reliable choice for use in harsh and contaminated environments.

Features & Benefits

• Ground capacitance of 40pF/ft ensures high-quality signals
• Slim outer diameter of 9.47mm for space-efficient installation in cramped enclosures
• Minimum bending radius of 10 times the diameter means it's highly flexible

Applications

• Security systems
• Control equipment
• Telecommunications industry

What's the maximum pull tension this cable can handle?

It has a maximum pull tension of 74lbs, so it withstands a lot of force without breaking or cracking.

Approvals

UL2464 Type CM

Datasheet

Cable Selection Guide
