6010C SL005, Alpha Wire Twisted Pair Data Cable, 3 Pairs, 0.35 mm², 6 Cores, 22 AWG, Screened, 30m, Grey Sheath

Belden Alpha Wire Data Cable, Flame-Retardant Fire Behaviour, -20°C to +75°C Operating Temperature Range - 6010C SL001

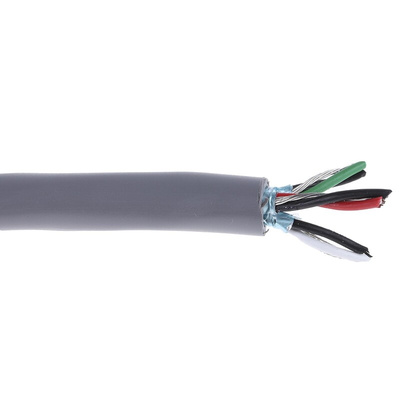

Opt for this data cable from Belden Alpha Wire to achieve the seamless transfer of information between your electronic devices. It's a multi-conductor type with six cores twisted into three pairs. Along with a robust foil-free aluminium/mylar tape, this design shields signals from disruptive EMI and RFI. As the cable is 304m long, you'll have enough reach to link up systems that are set far apart.

Features & Benefits

• Flame-retardant properties help stop fire from spreading
• PVC outer jacket delivers reliable insulation to protect against electric shocks
• Drain wire ensures effective grounding for added safety

Applications

• Computer peripherals
• Lighting controls
• Construction sites
• Robotics systems
• Factory floors

How flexible is this cable?

This cable has a minimum bend radius of 10 times its 7.57mm diameter for flexibility in tight spaces.

Approvals

UL 2493

Datasheet

Cable Selection Guide
