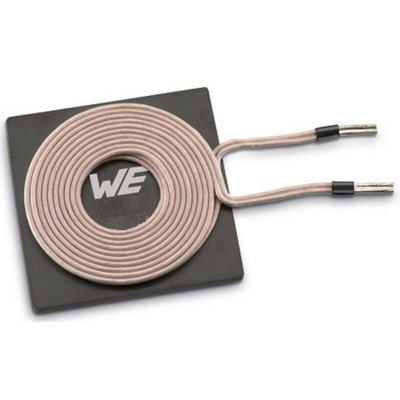

760308102213, Wurth Elektronik Radial Wireless Charging Receiver Coil, Ferrite Core, 1.7A, 330mΩ, 18 Q Factor

1120095
Номер производителя: 760308102213 Производитель: Wurth Elektronik
Цена за шт.
1026.30 руб. *

Срок поставки: 3-5 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Wurth WE-WPCC Series Qi Wireless Power Charging Coils

From Wurth Elektronik comes the WE-WPCC Series Qi wireless charging coils, an innovative wireless way to charge portable electronic devices such as mobile phones.

Current charging technologies make it impossible to charge devices of different brands from a single energy source. With the Wireless Power Consortium, Wurth has developed the Qi standard of a pioneering wireless charging technology.

Features

• Simply placing a device onto the QI charging station replaces the need for wired power charging.
• Devices on the charging surface are charged through magnetic induction.
• The Qi interface guarantees the compatibility of the devices, enabling every device, regardless of brand or manufacturer, to be charged on the charging surface.
• The transmitter and receiver coils are inductively coupled. The coupling ensures the AC current in the transmit coil generates a magnetic field which induces a voltage in the receive coil to power a device.
• The magnetic field between the coils is highly concentrated, exposing the user to only a small leakage field. An EMI shield on the back of the coil minimises the leakage field.
• Instead of bifilar, the coils are wound with litz wire, ensuring outstanding performance with the highest Q values and lowest DCRs.
• When used together, the receiver and transmistter coils achieve an efficiency of up to 75%.

Product Application Information

Wurth Elektronik wireless charging coils are ideal for use with devices such as fitness trackers and smart watches that have many mating cycles. Wireless technology avoids damaging connectors through repeated use. This series of wireless charging coils are suitable for portable devices used in clean areas where connectors could pose a risk of contamination or pollution. For example, industrial clean rooms and medical facilities. WE-WPCC wireless charging coils can also be used in explosion sensitive environments where a physical connection could be dangerous.

Other suitable applications for WE-WPCC charging coils include smart sensors and consumer products such as walkie talkies, smartphone sleeves, headsets and portable media players.

Техническая спецификация
pdfWurth Elektronik Application Note - Wireless Energy Transmission Coils as Key Components
pdfWurth Elektronik Application Note - High Power Wireless Power Transfer for the Industrial Environment
pdfSelection and Characteristics of WE-FSFS Ferrite Sheets - Application Note
pdfWurth Elektronik Application Note - Wireless Power Charging Coil Changing Considerations
pdfWurth Elektronik WE-WPCC Charging Receiver Coil Datasheet

Q-фактор:
18
Высота:
0.62мм
Длина:
29мм
Индукция:
7.9 мкГн
Максимальное сопротивление постоянного тока:
330мОм
Максимальный постоянный ток:
1.7A
Основной материал:
Ферритовый сердечник
Рабочая температура - максимальная:
+105°C
Рабочая температура - минимальная:
-20°C
Размеры:
29 x 29 x 0.62мм
Саморезонансная частота:
21МГц
Серия:
WE-WPCC
Тип монтажа:
Radial
Функция:
Receiver
Ширина:
29мм
