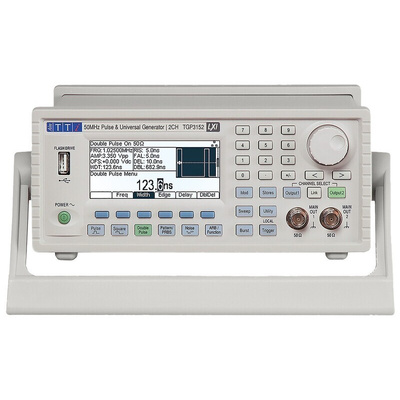

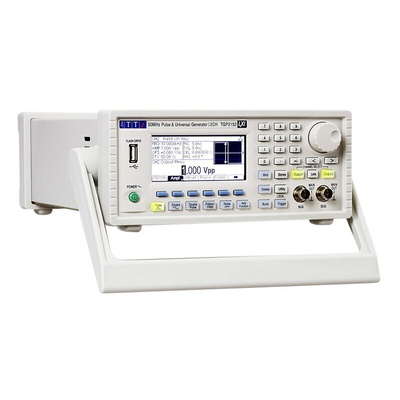

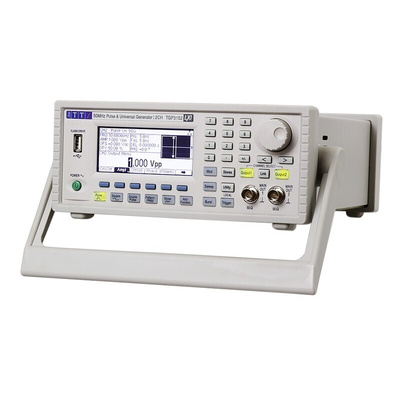

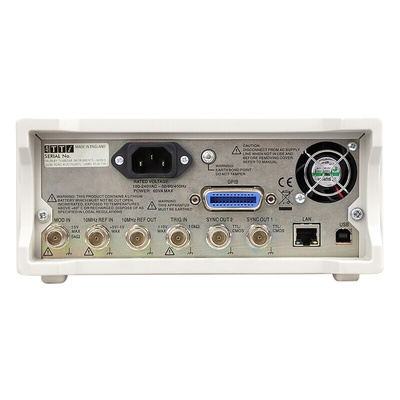

Aim-TTi TGP3121 Pulse Generator, 1 mHz min, 25 (Double Pulse) MHz, 50 (Pulse) MHz max, Генератор импульсов

Aim-TTi TGP3100 Series Pulse & Universal Generators

Features and Benefits

Pulse waveforms from 1mHz to 50 MHz [25 MHz], minimum rise time 5 ns [8 ns]
Pulse, double pulse, pulse pattern and PRBS waveforms
Pulse period, width and delay resolutions of 100 ps or 11 digits
Independently variable rise and fall times from 5 ns [8 ns] to 800 seconds
Low jitter asynchronous operation, externally triggered pulses or pulse reconstruction
High drive capability output can provide 20 V pk-pk into 50 Ω (unmatched)
Wide range of pulse modulations including AM.FM, PM, FSK, BPSK, SUM, PWM, PDMusing internal or external modulation sources.
Triggered (burst count) or gated operation using internal or external trigger sources
Full Noise generator to 25 MHz with selectable crest factor and user-defined distribution
Full Arbitrary/Function generator with 16 waveform types
Sine waves up to 50 MHz [25 MHz]
Arbitrary waveforms at 800MS/s sampling rate and 16-bit vertical resolution
Extensive internal/external modulation of all waveform types
GPIB, USB and LXI-compliant LAN interfaces
256 x 112 pixel monochrome graphics
White LED backlight with adjustable brightness and contrast
Black-on-white or inverse modes
Up to 9 complete instrument set-ups can be stored and recalled from non-volatile memory
Front panel-mounted USB Flash drive interface
USB and LXI-compliant LAN interfaces
Dimensions 97 x 250 x 295 mm
Weight 3.2 kg

Note

Aim-TTi TGP3100 Series pulse generators use all-digital techniques. They can replicate the capabilities of traditional pulse generators while adding extra facilities such as pulse modulations. And operating as pulse generators, the instruments can act as high-performance noise generators and as function/arbitrary generators - making them truly universal function generators.

Standards

EN61010-1

Aim-TTi Pulse Generator

The Aim-TTi pulse generator has 1 channel and operates at a frequency of 25MHz. This generator is developed using the new age digital techniques and thus it has all the capabilities of traditional pulse generators along with additional facilities like pulse modulations. It can generate pulses with very low jitter, high resolution of width and delay (100ps). While operating as pulse generators, this instrument can act as the high-performance noise generator and as function/arbitrary generator, making it truly a universal function generator.

Features and Benefits

Pulse waveforms ranging between 1mHz and 50MHz
Minimum rise time is 5nano seconds
Low jitter synchronous and asynchronous operation
Pulse, double pulse, pulse pattern and PRBS waveforms
Pulse period, width and delay resolutions of 100ps or 11 digits
Independently variable rise and fall times ranging between 5 Nano seconds and 800 seconds
Externally triggered pulses or pulse reconstruction
High drive capability output can provide 20V peak to peak into 50W (unmatched)
Wide range of pulse modulations including AM, FM, PM, FSK, BPSK, SUM, PWM, PDM using internal or external modulation sources
Triggered (burst count) or gated operation using internal or external trigger sources
Full Noise generator to 25MHz with selectable crest factor and user defined distribution
Full arbitrary/function generator with 16 waveform types sine waves up to 50MHz
Arbitrary waveforms at 800MS/s sampling rate and 16 bit vertical resolution
Internal channel coupling, tracking and modulations (2 channel models)
Extensive internal/external modulation of all waveform types
Linear and logarithmic sweeps of all waveform types
Front panel mounted USB Flash drive interface
GPIB, USB and LXI compliant LAN interfaces
256 pixel x 112 pixel monochrome graphics
White LED backlight with adjustable brightness and contrast
Black-on-white or inverse modes
Up to 9 complete instrument set-ups can be stored and recalled from non-volatile memory
Front panel-mounted USB Flash drive interface

Applications

Telecommunication
Electronics laboratories
Educational institutes
Electronics designing
Service and maintenance
