RP-4800-NR1-0, TE Connectivity Heat Shrink Tubing, Black 25.4mm Sleeve Dia. x 1m Length 4:1 Ratio, RP-4800 Series

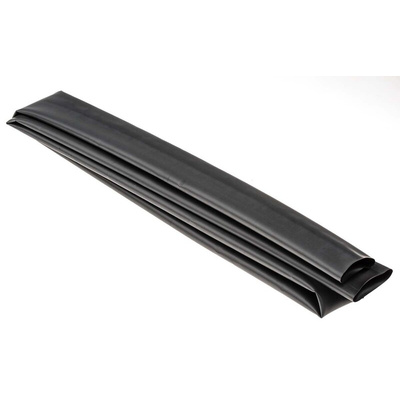

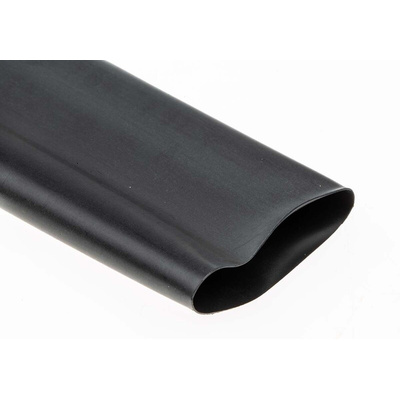

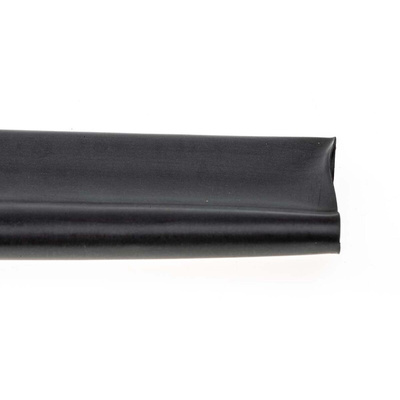

TE Connectivity Heat Shrink Tube

The TE Connectivity 1.2m black heat shrink tube eliminates the unnecessary removal of connectors or large transitions and allows for an easier harness assembly and repair. The polyolefin heat shrink tube is used in light-duty harnessing, jacketing and identification of wires and cables.

Features and Benefits

Conforms well to highly variable substrate dimension
Flame retardant
Flexible
Good mechanical strength
High expansion ratio is 4:1
Operating temperature ranging between -55°C and 135°C
Shrunk diameter is 7mm
Sleeve diameter is 25.4mm

Applications

Insulation and strain relief of wire terminations and electrical connections

Certifications

AMS-DTL-235053/5 class 1 over expanded
MIL-I-23053/5 class1
UL file E35586
UL224
VDE 0341 part 9005 type A
VG95343 part 5A

Approvals

UL 224; MIL-I-23053/5 Class1; VG95343 Part 5A
