FLK-1664FC UK, Fluke 1664FC Multifunction Tester, 50 V, 100 V, 250 V, 500 V, 1000 V , Earth Resistance Measurement With BLE, USB, Тестер

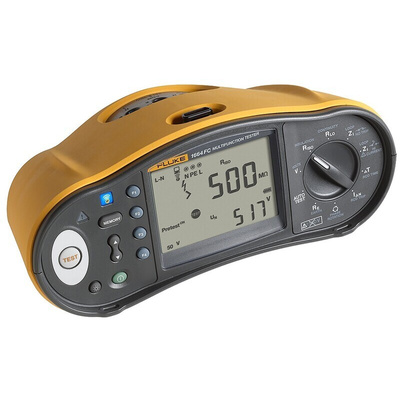

Fluke 1664 FC Multifunction Installation Testers

Fluke 1664 part of the 1660 Series. The new Fluke 1660 series verify the safety of electrical installations in domestic, commercial and industrial applications. They ensure that fixed wiring is safe and correctly installed to meet the requirements of IEC 60364 and all relevant local standards. Fluke 1660 series are the only testers that help prevent damage to connected appliances.

Fluke 1664 FC contains the Insulation-PreTest™ safety function (patent pending). This function prevents you from performing tests with appliances that are connected to the system during test, eliminating accidental damage.
With the addition of Fluke Connect, you can now send test results directly to your smartphone. The results can then be transmitted to other members of the team. Data can also be saved to Fluke Cloud™ Storage, reducing the amount of paperwork and possible errors. It is a secure and accurate way to store test data and create test certificates with Fluke DMS (data management software).

Features

Insulation-PreTest™ safety function
Insulation at L-N, N-PE inputs
Automatic test sequence
Continuity at L-N, N-PE inputs
Fluke Connect® compatibility
ShareLive™ Calling
FlukeCloud™ Storage
On/Off switchable auto-start for RCD and looptest
Z max memory
Heavy duty, single input line cord

Standards

IEC 60364

Supplied with

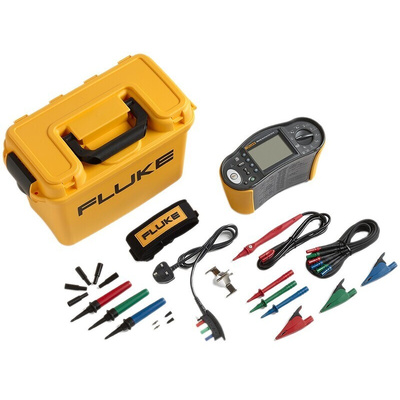

The Fluke 1664 FC comes with 6 x AA (LR6) cell batteries, CI600 hard carrying case, zero adapter, heavy-duty mains cord, test lead set, padded carrying/waist strap, quick reference guide, TP165X remote control probe & lead set (FTP used probes - UK only) and User's manual on CD-ROM.

FLUKE Multifunction Tester, Fluke Connect-Enabled, 2000Ω Maximum Continuity Resistance - 1660 Series - FLK-1664FC UK

To ward off shocking surprises when checking your electrical installations, use this multifunction tester from FLUKE. Safety's a priority from the get-go, thanks to a pre-test function that indicates whether any appliances are linked to the circuit being tested to prevent accidental damage. What's more, the special Earth Volt Touchpad red flags dangerous situations by detecting earth voltages above 50V. Working with colleagues in the field? Thanks to the unit's integration with Fluke Connect software, you can send results to your phone. From here, it's a breeze to store and share real-time measurements using the Fluke Cloud.

Features & Benefits

• 500V CAT III and 300V CAT IV ratings indicate that it's safe to use with high-voltage circuits
• Runs up to seven evaluations at once thanks to an Auto Test function
• IP40 rating indicates protection against damage from small objects and worksite debris
• Compact, portable design pops easily into your toolkit
• BLE and USB connectivity for easy data transfer straight to your computer

Applications

• Construction industry
• Manufacturing facilities
• Scientific laboratories

What accessories are included?

This multifunction tester comes with a padded neck-strap for hands-free comfort. There's also a hard carrying case, remote control probe and lead set, standard test lead set, mains cord, adapter and batteries.

Fluke 1663/1664 FC Multifunction Tester includes a feature to test 6mA RDC-DD, in accordance with international standards IEC 62955 and
IEC 61851-1. The new 6mA testing functionality adds an important feature to our already comprehensive testing solutions for electric vehicle supply equipment (EVSE), making it easier for our customers to perform all necessary tests in one go.
