FLK-1663 UK, Fluke 1663 Multifunction Tester, 50 V, 100 V, 250 V, 500 V, 1000 V , Earth Resistance Measurement With USB UKAS, Тестер

1135139
Номер производителя: FLK-1663 UKПроизводитель: Fluke
Цена за шт.
435675.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

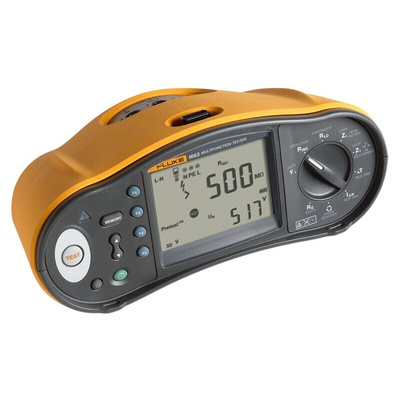

Fluke 1663 Multifunction Installation Testers

Fluke 1663 part of the 1660 Series. The new Fluke 1660 series verify the safety of electrical installations in domestic, commercial and industrial applications. They ensure that fixed wiring is safe and correctly installed to meet the requirements of IEC 60364 and all relevant local standards. Fluke 1660 series are the only testers that help prevent damage to connected appliances.

The Fluke 1663 is ideal for trouble shooting problems. Containing advanced measurement capability yet simple and easy to use.

Features

Continuity at L-N, N-PE inputs
On/Off switchable auto-start for RCD and looptest
Z max memory
Heavy duty, single input line cord

Note

Fluke 1663 replaces the existing Fluke 1653.

Standards

IEC 60364

Supplied with

6 x AA (LR6) cell batteries, CI600 hard carrying case, zero adapter, heavy-duty mains cord, test lead set, padded carrying/waist strap, quick reference guide, TP165X remote control probe & lead set (FTP used probes - UK only) and User's manual on CD-ROM.

Fluke Multifunction Installation Testers

The Fluke 1660 series multifunction installation tester with an insulation test voltage of 50V, 100V, 250V, 500V, 1000V. It ensures safe and correct installation of fixed wiring to meet the necessary requirements. It delivers full-featured functionality and advanced measurement capabilities that professional installers need. Its operation is intuitive and easily mastered by all levels of field workers. Fluke Connect allows you to send test results directly to your smartphone that can be transmitted to other members of the team. In addition to that, the data can be saved to Fluke Cloud™ storage, reducing the amount of paperwork and possible errors. It is a secure and accurate way to store test data and create test certificates with Fluke DMS. The autotest feature reduces test time as it performs five required installation tests in one sequence, including selectable Type A, AC, and RCD autotest. It reduces the number of manual connections, decreases the possibility of making errors, and reduces test time up to 40% from previous Fluke models.

Note
Fluke 1663 replaces the existing Fluke 1653.

Supplied with 6 x AA (LR6) cell batteries, CI600 hard carrying case, zero adapters, heavy-duty mains cord, test lead set, padded carrying/waist strap, quick reference guide, TP165X remote control probe & lead set (FTP used probes - UK only) and User's manual on CD-ROM.

Features and Benefits

Full-featured tester for installation professionals
Tests to all local regulations and provides test results for complete documentation
Tests continuity at L-N, N-PE inputs
Tests smooth dc sensitive RCDs (Type B)
Tests earth resistance, voltage, and frequency

Applications

Domestic
Industrial
Commercial

Certifications

CSA certified
CE certified
IP40 rated
EC/EN61557-1
IEC60364
IEC/EN61557-7

Техническая спецификация
pdfDatasheet
Автоматический RCD тест:
Да
Вес:
1.3 (с батареей)кг
Высота:
125мм
Длина:
100мм
Загружаемые данные:
Да
Земля - Измерение сопротивления:
Да
Измерение максимального напряжения:
500В перем./пост. тока
Источник питания:
Батарея
Калибровка:
UKAS
Категория безопасности:
CAT III 500 В, CAT IV 300 В
Категория безопасности напряжения:
300 В, 500 В
Категория безопасности уровня:
CAT III, CAT IV
Максимальное непрерывное сопротивление:
2000Ом
Минимальное непрерывное сопротивление:
20Ом
Модель р:
1663
Напряжение испытания изоляции:
50 В, 100 В, 250 В, 500 В, 1000 В
Непрерывность испытательного ток:
10мА
Размеры:
100 x 250 x 125мм
Режим удаленного переключения:
Да
Степень защиты IP:
IP40
Тест RCD Ramp:
Да
Тип батареи:
AA
Тип вилки:
UK
Тип интерфейса:
USB
Тип теста:
Continuity, Frequency, Insulation Resistance, Loop and Line Resistance, Measure Motor Windings, Phase Sequence Test, Prospective Earth Fault Current, Prospective Short Circuit Current, RCD Test, Resistance, Voltage, Wiring Polarity
Тип теста RCD:
A/F, AC, B/B+, G, S
Тип тестирования полного сопротивления контура:
Phase to Earth, Phase to Neutral
Ширина:
250мм
