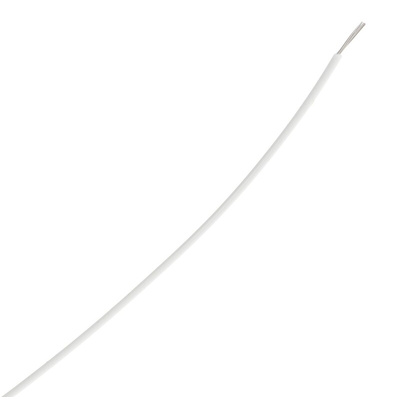

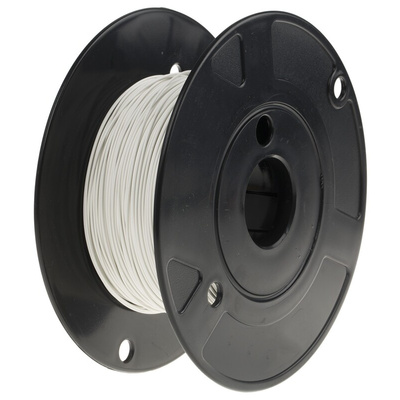

M22759/34-24-9, TE Connectivity M22759 Series White 0.22 mm² Hook Up Wire, 24 AWG, 19 / 36 AWG, 100m, ETFE Insulation, Провод

TE Connectivity M22759 Harsh Environment Wire

The M22759 wire is ideal for use with a wide range of commercial and military aerospace or ground system applications. Its particular role can make this wire perfect for harsh environments. The airframe version has a dual layer insulation.

Features and Benefts

• Small diameter
• Low smoke and corrosive gas generation
• Chemiscal resistant and electrical arc tracking
• Cross linked insulation
• Tough physical characteristics
• High temperature ratings up to +150°C
• Stranded tin plated copper conductor
• Crosslinked ETFE insulation

Note

NAVAIR has authorised the release of the material identified above on the understanding that all customers are aware of the following.

Despite the product(s) being labelled and marked as MIL-SPEC product(s), the Customer understands that the product(s):

(i) ARE NOT qualified by the Qualifying Agency

(ii) ARE NOT currently listed on the Qualifying Agency’s Qualified Product List

(iii) ARE NOT compliant to the relevant MIL-SPEC for the reasons identified in GIDEP E1R-P-22-01E, GIDEP E1R-P-22-02B, GIDEP E1R-P-22-03B all dated 11 Apr 2022.

Customer agrees that they will disposition the product(s) using relevant nonconforming material processes, including but not limited to obtaining DD1694 waivers where appropriate.
