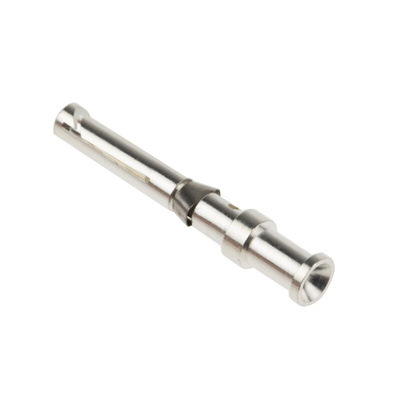

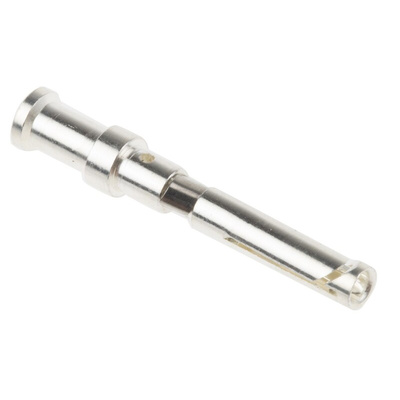

09150006203, Harting Han Contacts Series Female Crimp Contact, Rated At 10A, 250 V, For Use With Heavy Duty Power Connectors

1147879
Цена за шт. (норма упаковки 50 шт)
140.25 руб. *

Срок поставки: 4-6 недель

Stock Number: 114-7879
Номер производителя: 09150006203
Производитель: Harting
+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Han-Com®, Han D®, Han DD® and Han® E Crimp Contacts

A range of high quality turned crimp contacts for Han-Com®, Han D®, Han DD® and Han® E inserts. The appropriate parallel action crimp to tool is also available for optimum crimp quality, as is the appropriate service crimp tool.

• The parallel action crimp tool offers optimal crimp quality and features a rotating locator. See stock number 114-7706.
• For service and small assembly, the service crimp tool is offered complete with locator. See stock number 313-6607.

Note

Han-Com® inserts have mixed power and signal formats. A typical identifier is ’4//2’ which means there are 4 power contacts and 2 signal contacts. The current rating is different for each type of contact within a particular insert.

Approvals

UL, CSA, SEV

https://uk.rs-online.com/largeimages/L172844-01.gif
Han-Com Signal and Power (Crimp and Screw) Han-Com® Signal & Power (Crimp and Screw)

These Han- Com® inserts are available in current ratings from 10A to 100A. They are intended for use typically with hoods and housings; RS stock Nos. 181-0561, 181-0741, 181-0785, 363-8535, 363-8585 and their associated ranges. These hood and housing ranges are associated to a specific Harting 'Size' number identifier

Compatibility
Hood and Housing relationship
Poles 4//0 & 4//2 4//8 & 6//6 6//12 8//24
RS Range Nos 7 & 9 8 & 10 7 & 9 6
Harting ’Sizes’ 16B & 32B 24B & 48B 16B & 32B 10B
Typical Stock Nos 181-0741 & 363-8535 181-0785 & 363-8585 181-0741 & 363-8535 181-0561
Warning
  • These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Техническая спецификация
pdf09 15 000 62 Range Crimp Contact Pin Data Sheet
pdfHarting Tools for Contacts

Диапазон:
Han CD, Han Com, Han D, Han DD, Han DDD, Han Q
Для использования с:
Heavy Duty Power Connectors
Номинал тока:
10A
Номинальное напряжение:
250 В
Род:
Female
Серия:
Han Contacts
Тип аксессуара:
Обжимной контакт
Чертеж САПР:
3D CAD Model
