09330062601, HARTING Heavy Duty Power Connector Insert, 16A, Male, Han E Series, 6 Contacts

Han E® Inserts

• Poles: 6-48 (screw connection – wire csa 2.5mm²
• The 32 and 48 pole versions require two contact inserts per connector half; a standard insert numbered ’1 to 16’ or ’1 to 24’ pole insert (m) or (f) together with one numbered ’17 to 32’ or numbered ’25 to 48’ insert (m) or (f).
• These are identified in the price table - e.g. 32P + E (17 – 32)

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

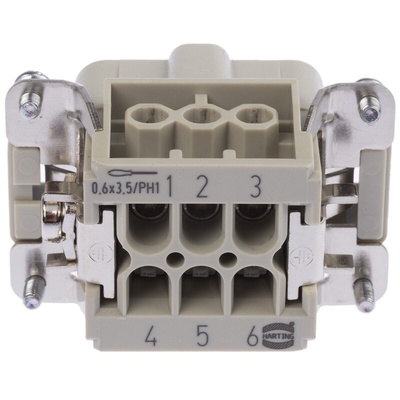

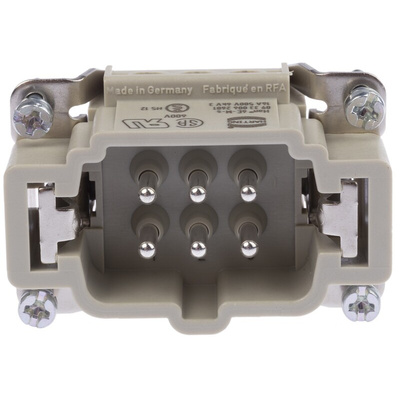

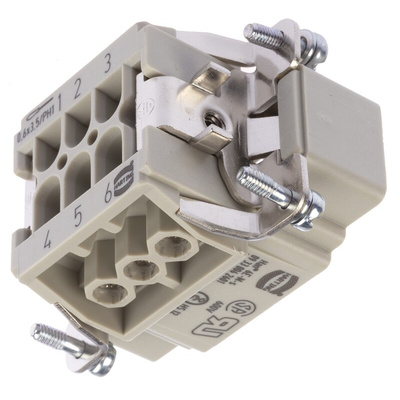

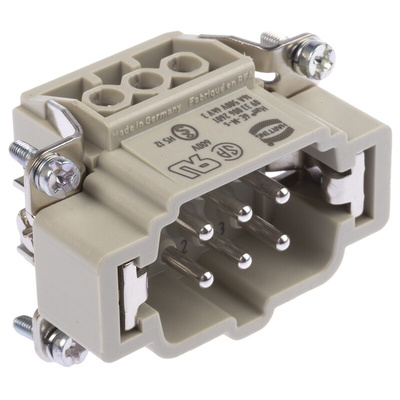

Han E Insert for 16 A Heavy Duty Power Connector

From Harting, this Han E Series insert is for use in 16 A heavy-duty power connector assemblies. With 6 positions, this insert has robust screw termination for wire sizes of up to 14 AWG. The insert is only compatible with corresponding Han E power connector components, of 6B size.
Featuring connecting M3 screws, the male insert is easy to incorporate into Han E housings, assembling to form a secure and robust heavy-duty power connector.

Features & Benefits

• 6 pole male insert
• Screw termination from 18 AWG to 14 AWG
• Compatible with 6B size housing and hood
• Rated to 16 A and 500 V
• Mechanical working life of ≥ 500 mating cycles
• Contact resistance of ≤ 1 mΩ

Product Application Information

Harting industrial connectors are suitable for all applications that require a safe and removable electrical connection in protected electrical areas.

Han E® 16A Screw Series

These Han E® inserts are rated at 16A. They are intended for use with hoods and housings. All these hoods and housing ranges are associated to a specific Harting ’Size’ number identifier. See the ’compatibility’ table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.

Han 6E / Han 6ES / Han 6ESS Technical Characteristics

Han 6E-M-s 09330062601 Datasheet
