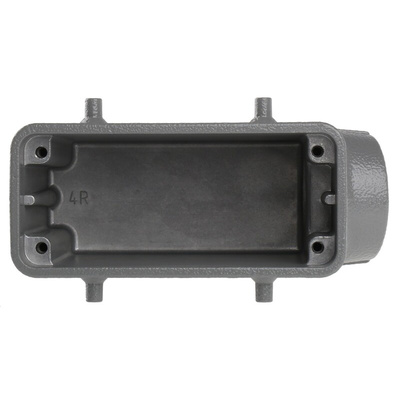

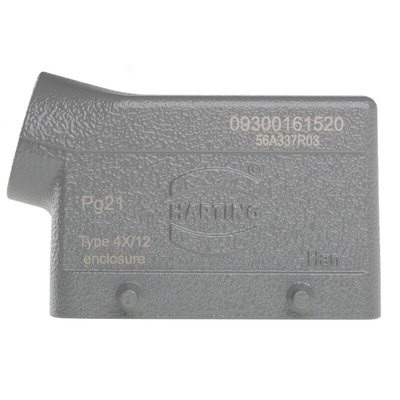

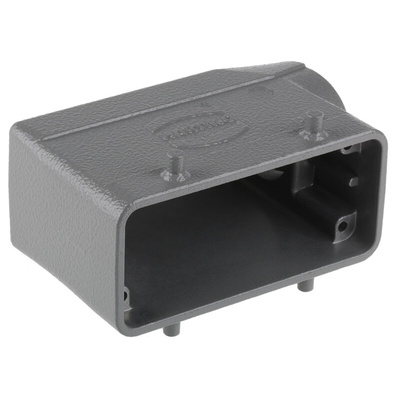

Hoods and Housings 16B
Harting Han 16B hoods and housings offered in a wide selection of formats, single lever, double lever, high and low construction, suitable for many applications. Utilises Han inserts, modules and frames.
Available for one or two locking levers
Locking levers are available either mounted on the hood or the housing see 114-8131
UL, CSA, SEV
These hoods and housings are compatible with appropriate inserts from the Han D®, DD, E,ES EE, Com, HsB and Modular series. The 'compatibility' table associated with item types 1 to 4 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range. If selecting inserts from the Modular series, please note that four inserts are accommodated within these 16B housings.
|Compatibility - Harting Size 16B|
|Inserts to Hoods and Housings|
|Insert Series||Han D||Han DD||Han E||Han ES||Han EE||Han HsB||Han Com||Han Modular|
|Poles||40+PE||72+PE||16+PE||16+PE||32+PE||6+PE||4/0+PE, 4/2+PE, 6/12+PE||4 modules|
|Inserts (typical RS stock no.)||114-8103||358-3671||114-8276||172-8541||282-9178||181-0943||172-8440|
- These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
Size 10/16/24 B Standard Hoods Technical Characteristics
