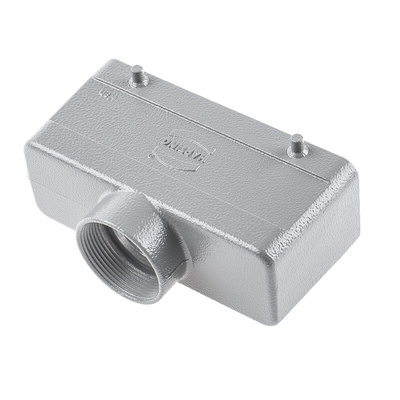

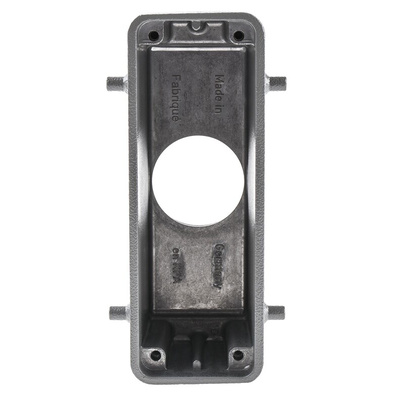

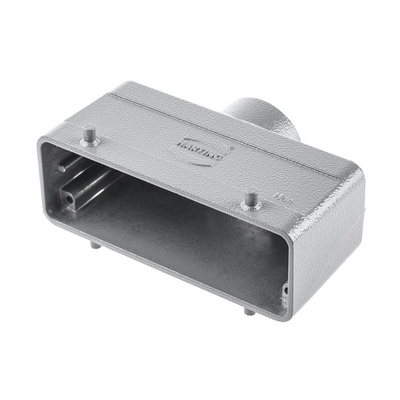

09300241421, Harting Han B Series Top Entry Connector Hood

1148361
Цена за шт.
3070.65 руб. *

Срок поставки: 4-6 недель

Stock Number: 114-8361
Номер производителя: 09300241421
Производитель: Harting
+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Hoods and Housings 24B

A comprehensive offering of hoods and housings from the Harting Han 24B range, compatible with a wide range of inserts, modules, frames including appropriate inserts from the Han D, DD, E, ES, EE, Com, E and Modular series.

Metal bodied
Metric and Imperial cable glands are available separately, see stock no. 405-8845 and 212-7668
Option of 1 or 2 locking levers on the hoods, and the bulkhead or surface mounting housings

Approvals

UL, CSA, SEV

https://uk.rs-online.com/largeimages/LI114832-11.gif
Range 8 - (Harting Size 24B)

These hoods and housings are compatible with appropriate inserts from the Han® D, DD, E, ES, EE, Com, D AV, E AV, and Modular series. The 'compatibility' table associated with item types 1 to 4 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.,Note: Only the Housing 114-8169 can be used with the Han D AV and E AV series. If selecting inserts from the Modular series, please note that six inserts are accommodated within these 24B housings.

Compatibility - Harting Size 24B
Insert Series Han D Han DD Han E Han ES Han EE Han Com Han D AV Han E AV Han Modular
Poles 64+PE 108+PE 24+PE 24+PE 46+PE 6//6 & 4/8+PE 64+PE 24+PE 6 Modules
Insert (typical RS stock no.) 114-8147 129-3102 114-8327 365-1904 282-9235 172-8428 365-2042 365-1982
Warning
  • These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Техническая спецификация
pdfSize 10/16/24 B Standard Hoods Technical Characteristics
pdfDimensional Drawing 09 30 024 1421 Hood

Ориентация корпуса:
Top Entry
Серия:
Han B
Тип:
Connector Hood
