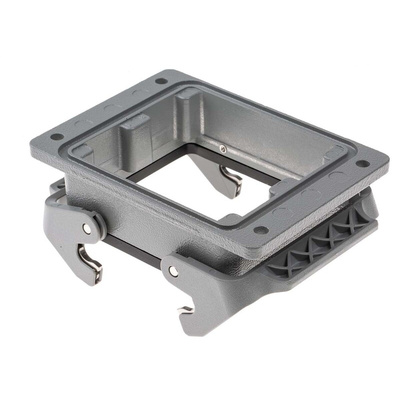

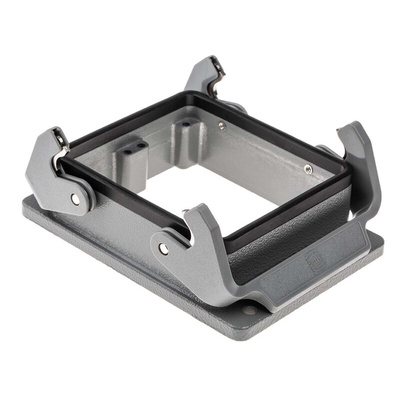

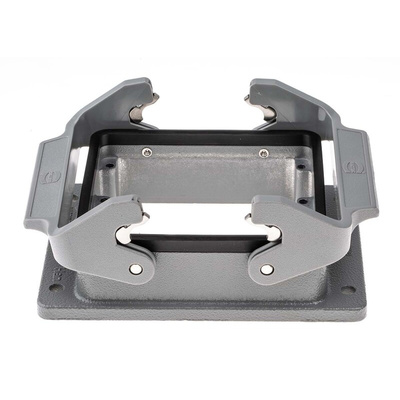

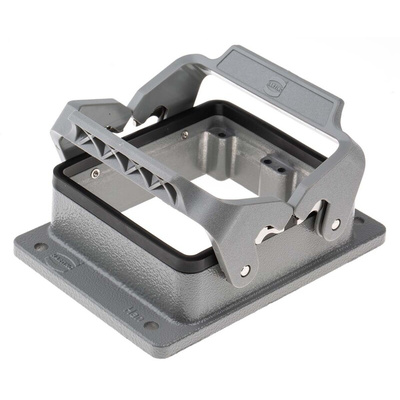

09300320301, HARTING Han B Heavy Duty Power Connector Housing

Hoods and Housing 32B

Two locking levers on housings
Cable gland available separately, see stock no. 313-6477 (typical of range)

Note

These size 32B housings will accommodate two size 16B inserts. They will also accommodate two 4-module frames selected from the Han Modular Series.

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Range 9 - (Harting Size 32B)

These hoods and housings are compatible with appropriate inserts from the Han D®, DD, E, EE, HsB, Com and Modular series. The 'compatibility' table associated with item type 1 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.
