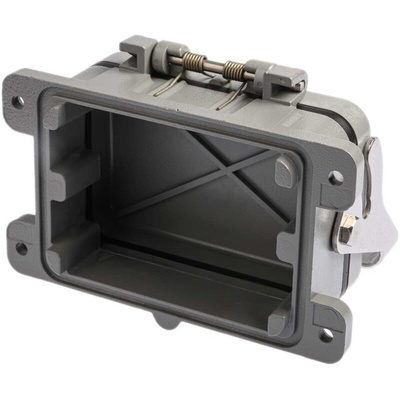

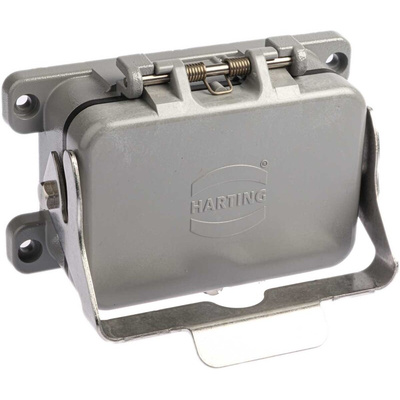

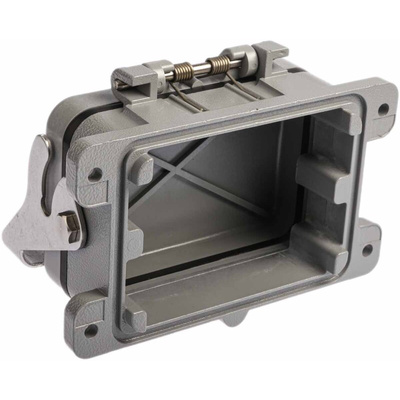

09300480301, Harting Han B Series Connector Housing

1148434
Цена за шт.
10736.55 руб. *

Срок поставки: 4-6 недель

Stock Number: 114-8434
Номер производителя: 09300480301
Производитель: Harting
+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Hoods and Housing

Single locking lever to bulkhead and surface mounting housings
Cable gland available separately, see stock no. 313-6477 and range
Surface mounting housing also available with a thermoplastic protective cover

Compatibility
Insert Series Han D Han DD Han E Han ES Han EE Han Com Han D AV Han E AV Han Modular
Poles 2x64+PE 2x108+PE 2x24+PE 2x24+PE 2x46+PE 2x(6//6) & 2x(4//8) +PE 2x64+PE 2x24+PE 2xFrames
Inserts (typical RS stock no.) 114-8147 129-3102 114-8327 365-1904 282-9235 172-8428 365-2042 365-1982 Select as required
Note

Cable diameters stated are in the form of min./max.

Approvals

UL, CSA, SEV

https://uk.rs-online.com/largeimages/LI114843-01.gif
Range 10 - (Harting Size 48B)

These Range 10 hoods and housings are a wide bodied version of the Range 8 types and take two inserts of each size and are compatible with appropriate inserts from the Han D®, DD, E, ES, EE, Com, D AV, E AV and Modular series. The 'compatibility' table associated with item type 1 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range. Note: Two inserts or two 'frames' from the Modular series of Han 'Size' 24B are accommodated within these 48B housings.

Warning
  • These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Техническая спецификация
pdfDatasheet
pdfSize 48B Standard Hoods/Housing Technical Characteristics

Серия:
Han B
Тип:
Корпус разъема
Чертеж САПР:
3D CAD Model
