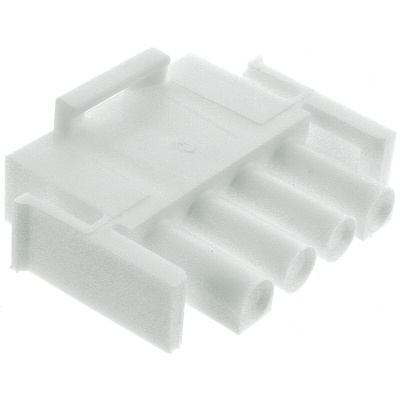

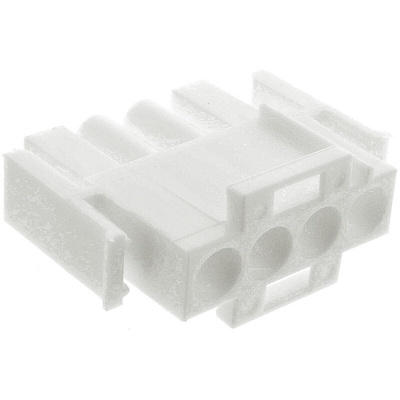

350779-1, TE Connectivity Universal MATE-N-LOK Series 4 Way 1 Row Male Straight PCB Housing

1151733
Цена за шт. (норма упаковки 5 шт)
49.50 руб. *

Срок поставки: 4-6 недель

Stock Number: 115-1733
Номер производителя: 350779-1
Производитель: TE Connectivity
+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

TE Connectivity Universal MATE-N-LOK Free Hanging or Panel Mount Plug Style Connector Housings

A range of Universal MATE-N-LOK plug housings with 6.35 mm pitch for use in wire to wire or wire to board applications that can be cable or panel mounted. These Universal MATE-N-LOK plug housings are made from UL94V-2 or UL94V-0 nylon and have snap-lock latches to ensure a quick release and polarization to ensure accurate mating.
Pin or socket contacts can be fitted in these Universal MATE-N-LOK plug housings. For suitable contacts see, for example, stock no. 720-2133
For tooling see stock no. 849-114 and die sets see for instance stock no. 849-136
For Strain relief Clamps see typical Stock Number 302-0120

Free plug dimensions
No. of Ways Body width Body depth Plug/ Receptacle mated length
2 22 14.7 43.2
3 28.3 14.7 43.2
4 34.7 14.7 43.2
5 41 14.7 43.2
6 22 27.4 43.2
9 28.3 27.4 43.2
12 34.7 27.4 43.2
15 41 27.4 43.2
including latches
* free plug/pin header mated length 41.4
Approvals

UL, CSA

https://uk.rs-online.com/largeimages/L115171-01.gif
https://uk.rs-online.com/largeimages/L115172-01.gif
TE Connectivity Universal MATE-N-LOK™ Range

Fully polarised plug/receptacle couplings
Housings positively lock together
Pin and socket contacts intermixable in the same housing
Safe handling of mated and unmated connectors
Wide range of sizes and wire acceptance
Quality ratchet operated comfort grip crimp tooling available
6.35mm (0.25in.) pitch
To convert to IP Splashproof rating, order sealing accessories see typically stock no. 366-1901

Universal power coupling and power to board connectors feature established reliability and ruggedness for many industrial applications.
Recommended panel thickness 0.76 to 2.28

Current rating (A) max:
Free plugs/receptacles 15
PCB headers 12
Voltage rating (Vac/dc) 600
Dielectric withstand voltage (kV) 5
Between circuits (kV) 10
Insulation resistance (MΩ) 1000
Contact resistance (mΩ) max 3.5
Temp. range (°C) -55 → +105
Mating cycles 50
Insulation material UL94V-2 Natural polyamide
Insulation material UL94V-0 White opaque Nylon 6.6
Contact material Brass, tin plated
Contact material (vertical header) Phosphor bronze, Tin plated

Техническая спецификация
pdfLine Drawing
pdfLine Drawing
pdfDatasheet

Глубина:
27.43мм
Для использования с:
Wire-to-Board Connector
Кол-во контактов:
4
Количество рядов:
1
Материал корпуса:
Нейлон
Ориентация корпуса:
Прямой
Род:
Male
Серия:
Universal MATE-N-LOK
Чертеж САПР:
3D CAD Model
Шаг:
6.35мм
Ширина:
14.73мм
