11.05.1006, Rotronic Ferrite Core Clip, Ферритовый сердечник

IT anti-interference ferrite rings for cables

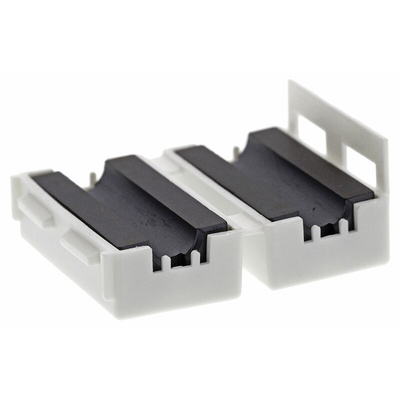

Split tube cores in nylon clip housing
Ferrite protected against mechanical damage
Simple retro-assembly by clamping the nylon housing onto the cable
Available for 2 different cable diameters
Housing made from UL94V-0
To eliminate IT interference on data cables already installed and equipped with plugs, used for computers and other digital devices

Split Ferrite Rings

These split ferrite cores reduce the electromagnetic interference from being induced in or radiated from data and power cables. High attenuation ratings are achieved with the housing design and the special process steps during the ferrite manufacture. The special snap lock makes the ferrite sleeve suitable for use with a variety of cable diameters and once the split ferrite is locked it cannot be opened accidentally.The outer housing is designed to protect the halves of the core from breakage and ensures simple assembly on to cables that are already installed or which have been fitted with connectors. Fixing to the cable with glue or cable tie is optional. Typical applications for these split ferrite cores include data or power lines used in computer technology, terminals, industrial controllers, medical engineering and office machines.

EMV Inerference Suppression Ferrite

Datasheet
