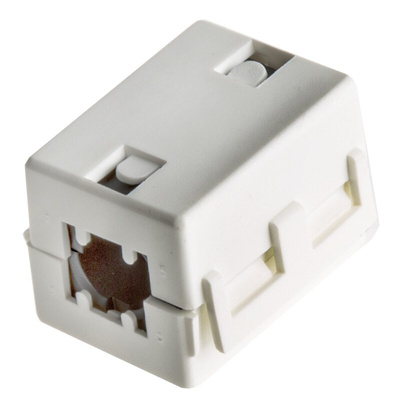

11.05.1010, Rotronic Openable Ferrite Sleeve, For EMI Suppression, 24.5 x 32 x 23.5mm, Apertures: 1, Diameter 10mm

1161487
Цена за шт.
635.25 руб. *

Срок поставки: 4-6 недель

Stock Number: 116-1487
Номер производителя: 11.05.1010
Производитель: Rotronic
+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

IT anti-interference ferrite rings for cables

Split tube cores in nylon clip housing
Ferrite protected against mechanical damage
Simple retro-assembly by clamping the nylon housing onto the cable
Available for 2 different cable diameters
Housing made from UL94V-0
To eliminate IT interference on data cables already installed and equipped with plugs, used for computers and other digital devices

Type For cables Impedance 25 mHz Impedance 100 mHz
Ferrite – 6.5 6.5 mm 125 Ω 275 Ω
Ferrite – 10 10mm 130 Ω 290 Ω
Frequency range: 300 mHz
Split Ferrite Rings

These split ferrite cores reduce the electromagnetic interference from being induced in or radiated from data and power cables. High attenuation ratings are achieved with the housing design and the special process steps during the ferrite manufacture. The special snap lock makes the ferrite sleeve suitable for use with a variety of cable diameters and once the split ferrite is locked it cannot be opened accidentally.The outer housing is designed to protect the halves of the core from breakage and ensures simple assembly on to cables that are already installed or which have been fitted with connectors. Fixing to the cable with glue or cable tie is optional. Typical applications for these split ferrite cores include data or power lines used in computer technology, terminals, industrial controllers, medical engineering and office machines.

Техническая спецификация
pdfDatasheet
pdfEMV Inerference Suppression Ferrite

Внешняя высота:
23.5мм
Внешняя глубина:
32мм
Внешняя ширина:
24.5мм
Количество апертур:
1
Материал:
Ferrite
Наружные размеры:
24.5 x 32 x 23.5мм
Отверстие - диаметр:
10мм
Открываемость:
Да
Применение:
EMI Подавление
Серия:
EMV
Тип:
Conduit Core
