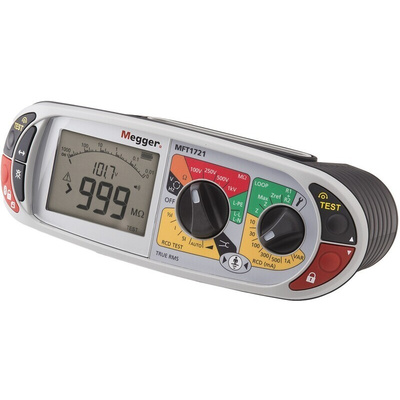

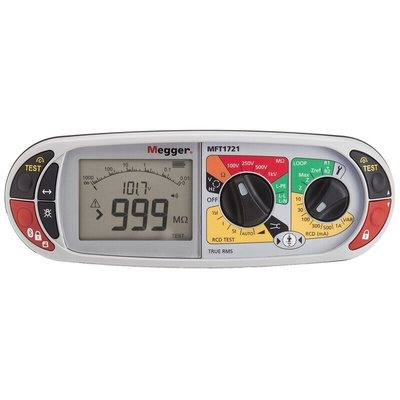

Megger MFT1721 Multifunction Tester

The MFT1721 is part of the MFT1701 series from Megger whcih tests low voltage electrical installations to BS7671. Providing all the tests required to complete the necessary electrical certification for industrial, commercial, and domestic fixed wiring installations. The unique design allows it to be operated while mounted on the floor, a ladder-shelf, platform, and held or hung around the neck.

The MFT1721 includes full input protection and safety warnings when a hazardous voltage is present. If live voltages exist on a circuit during insulation or continuity testing, the voltage is displayed on the screen. If this voltage exceeds a safe level, further testing is inhibited, and a warning beep sounds.

Features

Simple colour-coded test selection
Large clear backlit display for ease of use
Dual TEST and LOCK buttons, easy to use left or right handed
Two and three wire non-trip loop testing for RCD protected circuits
Type-B RCD and 3 phase RCD testing for industrial applications with no Earth
3-terminal earth test and stake less testing for electrode resistance measurement
EN61010 CAT IV safety rating
Fully compliant with IEC 60364, VDE 0100 & BS7671
Durable IP54 case
Lightweight, compact design

Onsite Features

Bluetooth downloading
Onsite Software
Memory option
Rechargeable cells
200 mA test with option of 15 mA
3 pole earth test
Complete certificates on-site as you go or stores the data until you get home
Reduce errors
Increase productivity
Saves you hours of form filling

Software Package - Basic FormFiller Certification

Operators can access and download for free the software package from Megger via the web site. Offering users a quick and simple solution to create and store standard IET certification forms and PAT certificates. Suitable for use on Windows® platforms running JAVA 8. FormFiller provides a simple, intuitive form completion tool, allowing professional printed certificates and documentation to be produced with negligible software skills. All certificates and forms can be stored within the application or exported in PDF form.

Features

• Simple operational interface
• Storage of completed forms with retrieval by certificate type or client
• PDF export facility for safe and simple distribution
• Multi-page Schedules for testing larger installations
• Drop down fields to speed up certificate completion

FAQ
What other options are available in this series?

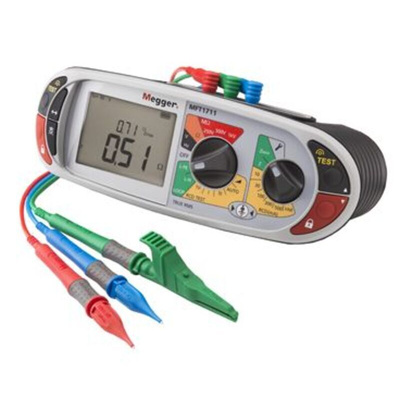

MFT1711 (RS 117-6026) - Tester, three wire lead set, mains test lead, 12-month calibration certificate, warranty upgradeable to 3 years & moulded case.

MFT1731 (RS 117-6028)- Tester, three wire lead set, mains test lead, switched probe, internally rechargeable batteries, and charger, 12-month calibration certificate, warranty upgradeable to 3 years & soft pouch.

Note

Type-B RCD and 3 phase RCD testing for industrial applications with no Earth

Supplied with

MFT1721 - Tester, three wire lead set, mains test lead, switched probe, 12-month calibration certificate, warranty upgradeable to 3 years & moulded case

Megger Multifunction Tester, Battery-Operated, Backlit Display - MFT1701 Series - 1008-123

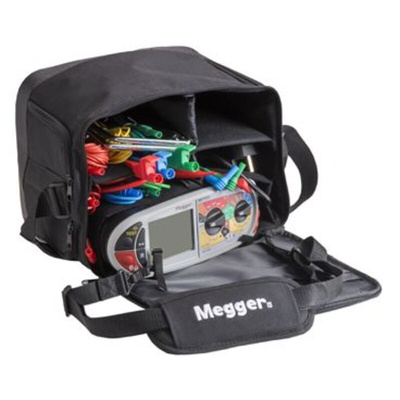

Stay on top of your electrical certification tasks with this multifunction tester from Megger. It's got everything you need to check commercial, industrial and residential low-voltage installations, making it a must-have for electricians. This device comes with everything you need to get to testing in a snap, including a three-wire lead set with prods and clips. You also get a neck strap to keep your kit on hand when you're moving around a job site. As this tool is electromagnetically compatible, there's little chance of it interfering with nearby electronic devices.
The MFT1721 is part of the MFT1701 series from Megger which tests low voltage electrical installations to BS7671. Providing all the tests required to complete the necessary electrical certification for industrial, commercial, and domestic fixed wiring installations. The unique design allows it to be operated while mounted on the floor, a ladder-shelf, platform, and held or hung around the neck.

The MFT1721 includes full input protection and safety warnings when a hazardous voltage is present. If live voltages exist on a circuit during insulation or continuity testing, the voltage is displayed on the screen. If this voltage exceeds a safe level, further testing is inhibited, and a warning beep sounds.

Features & Benefits

• IP54 rating means it's protected against limited amounts of dust and water sprays
• Backlit display offers easy-to-read test results
• Provides warnings in the event of a hazardous voltage for increased safety
• Colour-coded controls reduce the risk of using the incorrect function
• Simple colour-coded test selection
• Dual TEST and LOCK buttons, easy to use left or right handed
• Two and three wire non-trip loop testing for RCD protected circuits
• Type-B RCD and 3 phase RCD testing for industrial applications with no Earth
• 3-terminal earth test and stake less testing for electrode resistance measurement
• EN61010 CAT IV safety rating
• Fully compliant with IEC 60364, VDE 0100 & BS7671
• Durable IP54 case
• Lightweight, compact design
Onsite Features
• Bluetooth downloading
• Onsite Software
• Memory option
• Rechargeable cells
• 200 mA test with option of 15 mA
• 3 pole earth test
• Complete certificates on-site as you go or stores the data until you get home

Applications

• Construction sites
• Public infrastructure
• Electrical engineering
• Power utilities

Does this multifunction tester start automatically?

Yes, the device starts your selected test automatically. As there's no need to press a button, your hands are free to hold your test probes.

Software Package - Basic FormFiller Certification

• Simple operational interface
• Storage of completed forms with retrieval by certificate type or client
• PDF export facility for safe and simple distribution
• Multi-page Schedules for testing larger installations
• Drop down fields to speed up certificate completion

Operators can access and download for free the software package from Megger via the web site. Offering users, a quick and simple solution to create and store standard IET certification forms and PAT certificates. Suitable for use on Windows® platforms running JAVA 8. FormFiller provides a simple, intuitive form completion tool, allowing professional printed certificates and documentation to be produced with negligible software skills. All certificates and forms can be stored within the application or exported in PDF form.

FAQ
What other options are available in this series?

MFT1711 (RS 117-6026) - Tester, three wire lead set, mains test lead, 12-month calibration certificate, warranty upgradeable to 3 years & moulded case.

MFT1731 (RS 117-6028)- Tester, three wire lead set, mains test lead, switched probe, internally rechargeable batteries, and charger, 12-month calibration certificate, warranty upgradeable to 3 years & soft pouch.
