RS PRO 2 x 115V ac, 2 x 115V ac Toroidal Transformer, 200VA, Трансформатор

RS PRO 2 x 115 V AC, 2 x 115 V AC Toroidal Transformer, 200 VA

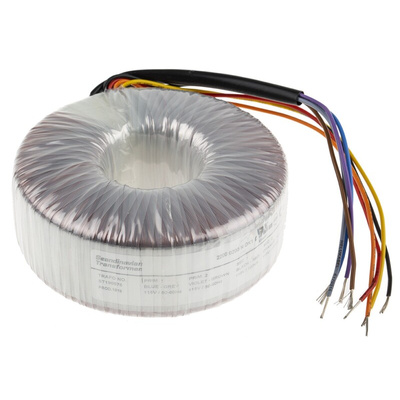

This toroidal transformer from our trusted RS PRO range provides a flexible way to transfer energy in your control circuit in order to help operate machines and systems safely. The ring-shaped unit emits only a low level of electromagnetic radiation, so placing it next to other components won't cause any interference.

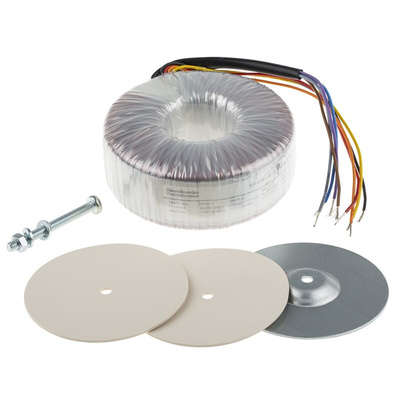

This open-style transformer has colour-coded wires with stripped ends, so it's ready to connect to your chosen circuit and easy to install. It's also suitable for surface mounting and comes with two rubber washers, a metal disc and a bolt and nut, allowing you to fix it in place with ease.

Features and Benefits

• Primary voltage rating of 2 x 115 V AC
• Secondary voltage rating of 2 x 115 V AC
• Power rating of 200 VA
• Height of 45 mm
• Diameter of 115 mm
• Operating frequency range of 50 to 60 Hz
• Isolation voltage of 4 kV AC
• Maximum temperature of +105°C
• Wire termination type
• Complies with RoHS (Restriction of Hazardous Substances) standards
• Complies to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO Datasheet
