RS PRO 2 x 115V ac, 2 x 40V ac Toroidal Transformer, 300VA, Трансформатор

RS PRO 2 x 115 V AC, 2 x 40 V AC Toroidal Transformer, 300 VA

Transfer energy in your control circuit for the safe operation of machinery and systems with this RS PRO 300 VA toroidal transformer. It emits minimal levels of electromagnetic radiation, so you can place it safely next to other components without the risk of interference.

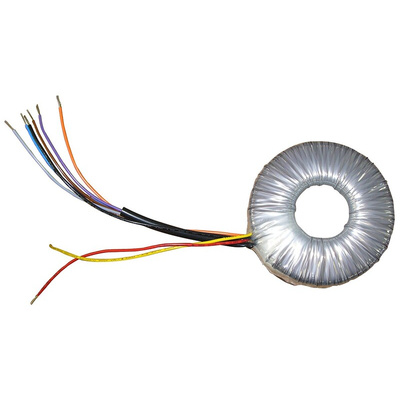

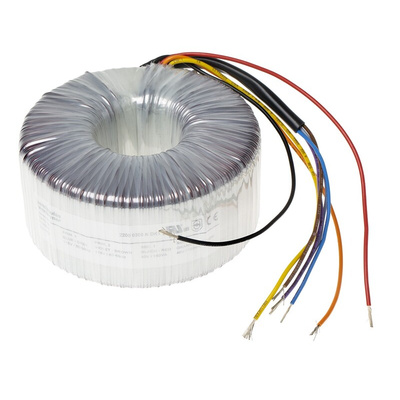

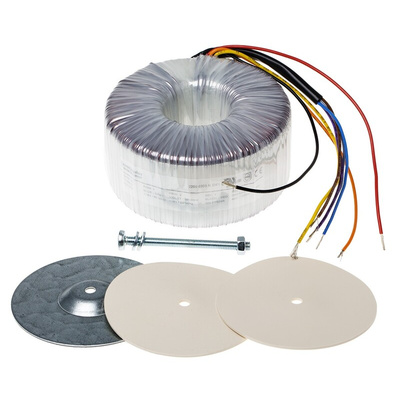

This transformer is fitted with colour-coded wires with stripped ends for easy connection to your circuit of choice. It comes supplied with two rubber washers, a metal disc and a bolt and nut for surface mounting.


Toroidal transformers such as this one are typically used in electronic applications to assist in stepping voltage up and down. They're found in everything from high-tech household appliances to medical instruments and lighting systems.

Features and Benefits

• Primary voltage rating of 2 x 115 V AC


• Secondary voltage rating of 2 x 40 V AC


• Power rating of 300 VA


• Height of 60 mm


• Diameter of 117 mm


• Operating frequency range of 50 to 60 Hz


• Isolation voltage of 4 kV AC


• Maximum temperature of +105°C


• Wire termination type


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO Datasheet
