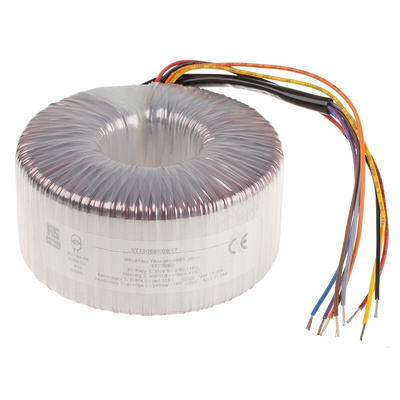

RS PRO 2 x 115V ac, 2 x 115V ac Toroidal Transformer, 300VA 2 Output, Трансформатор

RS PRO 2 x 115 V AC, 2 x 115 V AC Toroidal Transformer, 300 VA 2 Output

Are you looking for an easy way to transfer power in your control circuit? This toroidal transformer from RS PRO helps run machines and systems safely. It produces minimal levels of electromagnetic radiation, so there's no danger of interference if you place it next to other components.


This unit features colour-coded wires with stripped ends, making it quick and easy to install in your circuit. You can also surface mount it using the supplied bolt, nut, metal disc and two rubber washers.

Features and Benefits

• Primary voltage rating of 2 x 115 V AC


• Secondary voltage rating of 2 x 115 V AC


• Power rating of 300 VA


• Height of 60 mm


• Diameter of 117 mm


• Operating frequency range of 50 to 60 Hz


• Isolation voltage of 4 kV AC


• Maximum temperature of +105°C


• Two outputs


• Wire termination type


• Weight of 2.7 kg


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO Datasheet
