RS PRO 2 x 115V ac, 2 x 115V ac Toroidal Transformer, 2000VA 2 Output, Трансформатор

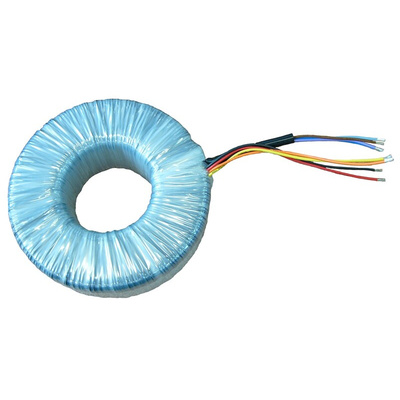

RS PRO 2 x 115 V AC, 2 x 115 V AC Toroidal Transformer, 2000 VA 2 Output

This RS PRO toroidal transformer offers a flexible method for transferring energy in your control circuit in order to help run systems and machines safely. It emits low levels of electromagnetic radiation, so it won't interfere with nearby components.


It's easy to install and connect to your circuit set-up thanks to the colour-coded wires with stripped ends. You can also surface mount it easily using the supplied bolt and nut, metal disc and two rubber washers.

Features and Benefits

• Primary voltage rating of 2 x 115 V AC


• Secondary voltage rating of 2 x 115 V AC


• Power rating of 2000 VA


• Height of 75 mm


• Diameter of 238 mm


• Operating frequency range of 50 to 60 Hz


• Isolation voltage of 4 kV AC


• Maximum temperature of +105°C


• Wire termination type


• Two outputs


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO Datasheet
