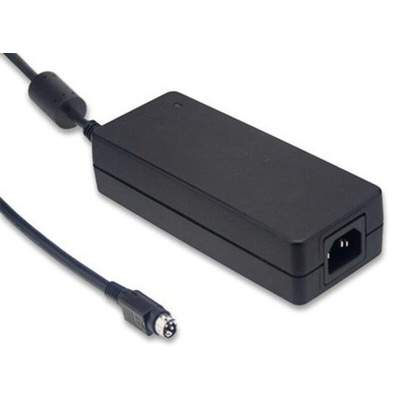

GST160A24-R7B, MEAN WELL 160W Power Brick AC/DC Adapter 24V dc Output, 0 → 6.67A Output, Блок питания

Mean Well Desktop Power Supply

The Mean well GST160A series is a 24VDC desktop power supply with a high-quality desktop AC/DC adapter. This range of power supply provides 160W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 47Hz to 63Hz. While the input voltage range is 85VAC to 264VAC/120VDC to 370VDC. This product is equipped with a 3-pin standard IEC320-C14 power plug. This series of power supplies boast an efficiency rating of up to 94%, coupled with an extremely low no-load consumption rating of below 0.015W.

Features and Benefits

Output current is 6.67A
Level VI energy efficiency rating
Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards
Equipped with industry standard protection such as short-circuit, overload, over voltage and over temperature
LED indication of power status
Working temperature is ranges between -30°C and 70°C

Applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipment

Certifications

EISA 2007 / DoE
NRCan
AU/NZ MEPS
EU ErP
CoC V.5EN55022 class B
EN55022 class B
EN61000-3-2,3
FCC PART 15 / CISPR22 class B
CNS13438 class B
GB9254
GB17625.1
EN61000-4-2,3,4,5,6,8,11
light industry level, criteria A

Mean Well GST160A Power Supply Datasheet
