GST280A48-C6P, MEAN WELL 280.32W Power Brick AC/DC Adapter 48V dc Output, 0 → 5.84A Output, Блок питания

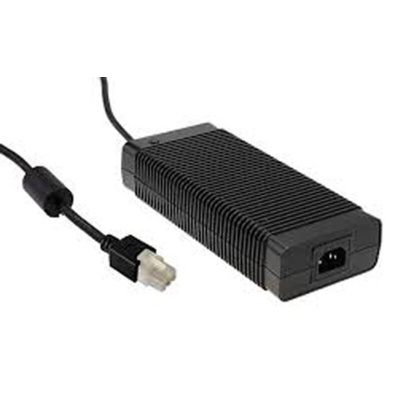

Mean Well Desktop Power Supply

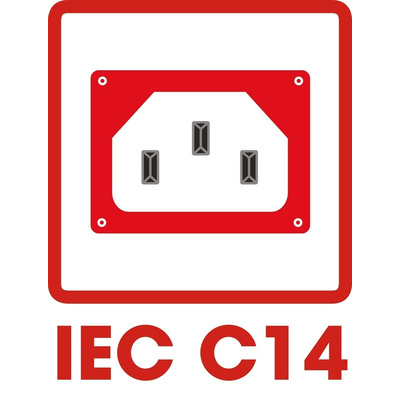

The Mean well GST280A series desktop power supply is the latest invention with a high-quality adapter and a voltage rating of 48VDC. It provides 280.32W of continuous output power in a high-quality, compact enclosure suitable for many general power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 85VAC to 264VAC/120VDC to 370VDC, its maximum leakage input current is 1.5A. This product is equipped with a 3-pin standard IEC320-C14 power plug. This power supply boasts an efficiency rating of up to 94.5%, coupled with an extremely low no-load consumption rating of below 0.15W.

Features and Benefits

Output current is 5.84A
Level VI energy efficiency rating
Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards
Equipped with industry standard protection, such as short-circuit, overload, over voltage and over temperature
LED indication of power status
Working temperature ranges between -30°C and 70°C

Applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipment

Certifications

EISA 2007 / DoE
NRCan
AU/NZ MEPS
EU ErP
CoC V.5EN55022 class B
EN55022 class B
EN61000-3-2,3
FCC PART 15 / CISPR22 class B
CNS13438 class B
GB9254
GB17625.1
EN61000-4-2,3,4,5,6,8,11
Light industry level, criteria A

Datasheet

Datasheet
