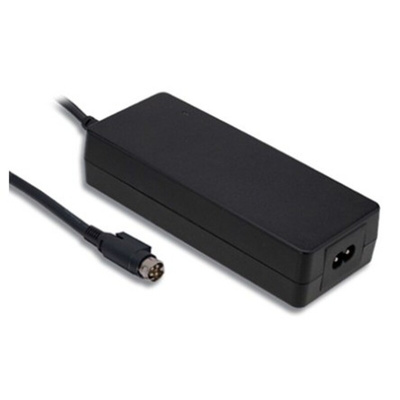

GSM160B24-R7B, MEAN WELL 160W Power Brick AC/DC Adapter 24V dc Output, 0 → 6.67A Output, Блок питания

Mean Well GSM160B Series Desktop Power Supply

Mean Well GSM160B series of medical grade 160 W power supplies offer a highly reliable desktop styled solution to a wide variety of power management solutions. The GSM160B series comes equipped with a 3 pole IEC320-C8 AC inlet, allowing for an input range of 85 V ac to 264 V ac. This series of power supplies boast an efficiency rating of up to 94%, coupled with an extremely low no-load consumption rating of below 0.15 W.

Features and Benefits
•Medical safety approved.
•Level VI energy efficiency rating.
•2 pole AC inlet IEC320-C8.
•Class 2 power (without earth pin).
•With appropriate consideration, suitable for use within BF applications.
•Integral active PFC function.
•Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
•Equipped with industry standard protection, such as short circuit, overload, over voltage & over temperature.
•LED indication of power status.
•Fanless design supports a working temperature range of -30 to +70°C.
•100% full load burn-in testing prior to transit.



Typical Applications
•Mobile clinical workspace.
•Breath machine.
•Medical computer monitor.
•Oral irrigator.
•Portable hemodialysis machine.

Standards

EISA 2007 / DoE, NRCan, AU/NZ MEPS, EU ErP & CoC V.5.

Mean Well GSM160B Power Supply Datasheet
