FW8000/12, Friwo, 12W Plug In Power Supply 12V dc, 1A, Level VI Efficiency, 1 Output Switched Mode Power Supply, 2-Pin Global

1176619
Номер производителя: FW8000/12Производитель: Friwo
Цена за шт.
11562.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 10995.00 руб. 10407.00 руб. 9840.00 руб. 9249.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

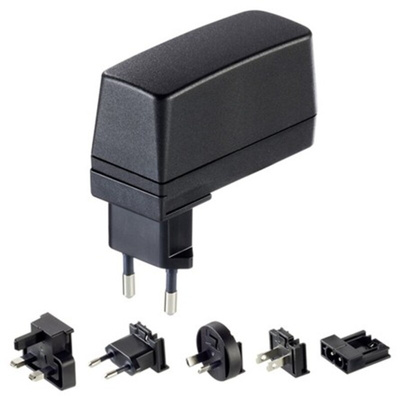

Friwo Power Supply

The Friwo FOX series power supply has a regulated output voltage of 12VDC. It supports numerous applications due to a wide range of input (100-240V AC) that complies with the universal standard and changeable input plug for use in the UK, Europe, USA, Japan and Australia. It meets the requirements of the department of energy level VI and is compatible with the FOX interchangeable plug system as well. It has low power consumption when left idle. Also, the running efficiency offers some of the highest in its class.
Inclusions:
A set of 7 output connectors.

Features and Benefits

USB output options available
Interchangeable plug system allows for flexibility
Medical rated options available to adhere to 2 x MOPP
Friwo's partial potting technology within the FOX series provides a cost-effective sealed unit
Power rating is 12W
Output current is 1A
Plug type is 2-pin global

Certifications

IEC/EN/UL 60950
IEC/EN/ ANSI/AAMI ES60601
CE certified
EN 55022
EN 55024
EN EC22
IEC 60065
IEC 60335-1
IEC 60950
PSE approved
SIQ approved

Техническая спецификация
pdfFriwo FOX Series Datasheet
Встречающиеся стандарты:
CE, cULus, EN 55022, EN 55024, EN EC22, IEC 60065, IEC 60335-1, IEC 60950, PSE, SIQ
Входное напряжение:
100 В перем. тока, 110 В перем. тока, 115 В перем. тока, 120 В перем. тока, 127 В перем. тока, 220 В перем. тока, 230 В перем. тока, 240 В перем. тока
Входной разъем:
Universal Plug
Выходной разъем:
Interchangeable
Выходной ток:
1A
Глубина:
41мм
Длина:
77.5мм
Количество выходов:
1
Максимальная температура:
+40°C
Минимальная температура:
0°C
Мощность номинальная:
12Вт
Напряжение выходное:
12В пост. тока
Серия:
FW8000
Тип:
Switched Mode Power Supply
Тип вилки:
2-Pin Global
Уровень энергоэффективности:
VI
Ширина:
31.5мм
