NCN5150SOICGEVB - M-BUS Transceiver Evaluation Board, ON Semiconductor

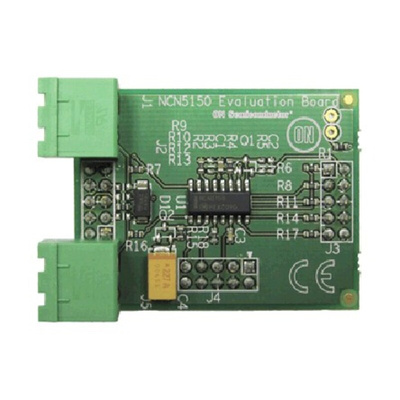

The ON Semiconductor NCN5150SOICGEVB evaluation board features the NCN5150 (RS 796-1198) M-BUS transceiver in an SOIC package. The board includes all components needed for operating and demonstrating this device.
The NCN5150 is an integrated slave transceiver for use in two-wire Meter Bus (M-BUS) slave devices and repeaters. It includes a programmable power level of up to 2 unit loads which are available for use in external circuits through a 3.3 V LDO regulator. It can provide communication up to the maximum M-BUS communication speed of 38400 Bd (half-duplex).
Single-chip MBUS Transceiver
Up to 38400 Bd UART Communication Speeds
Integrated 3.3 V VDD LDO Regulator with Extended Peak Current
Adjustable I/O Levels
Low Bus Voltage Operation
Polarity Independent
Power-Fail Function
M-Bus (Meter-Bus) is a European standard (EN 13757-2 physical and link layer, EN 13757-3 application layer) for the remote reading of gas or electricity meters.
Техническая спецификация
NCN5150SOICGEVB Evaluation Board Test ProcedureNCN5150 Evaluation Board User ManualNCN5150 Wired M-BUS Slave Transceiver DatasheetESD Control Selection Guide V1| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
