DRA200G/60-80, Sensata / Cynergy3 SPST Reed Switch, 1.3A 250V ac/dc, Герконовый переключатель

Form A & C Reed Switches

Suitable for use with location sensors, proximity switches and level switches at low to medium voltages and current
Electrical Life 10⁵ - 10⁶ Switching Cycles
Mechanical Life 10⁹ Operations
For suitable magnets, see stk. no 118-7108 typically

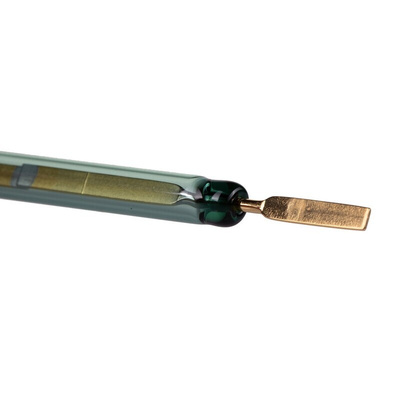

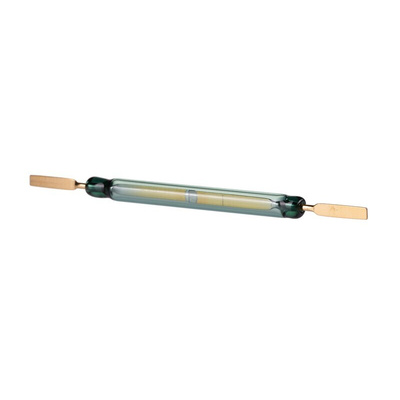

Sensata Cynergy3 Reed Switch, 80VA Switching Power, Rhodium Contacts- DRA Series - DRA200G/60-80

Need a reliable way to control the flow of electricity in a circuit? Choose this reed switch from Sensata Cynergy3. It's actuated by a magnetic field that turns the current on and off. This component has a maximum switching power of 80VA for use in high-power systems. You can use a unit like this one in alarm systems, defibrillators and household appliances, as well as in larger applications such as electric vehicle charging points and surgical equipment.

Features & Benefits

• Maximum switching voltage of 250V AC/DC to support low to medium-voltage applications
• Rhodium contacts are highly durable to handle heavy loads
• Wide operating temperature range of -40°C to +150°C for use in demanding environments
• Low contact resistance of 80mΩ for a reliable connection

How large is this reed switch?

This reed switch has compact dimensions of 79 (L) x 5.4mm (diameter), so it will take up minimal space in your setup.

What's the operating time of this reed switch?

This reed switch has a quick operating time of 4ms to ensure rapid switching.
