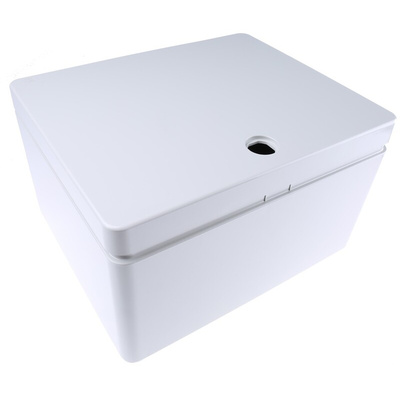

0212530900, Rose Mini-Polyglas Series ABS Wall Box, IP65, 300 mm x 250 mm x 170mm, Настенный шкаф

ABS Mini Control IP65 Wall Box Enclosure.

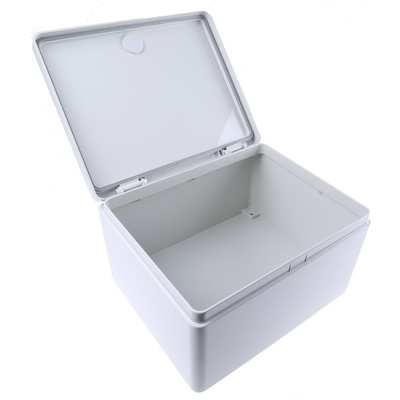

Rose Mini ABS wall box enclosures are designed for C & I equipment complete with a hinged lid. The standard version of the enclosure has an opaque door/lid and the non-standard version is supplied with a transparent door/lid. The enclosures are IP65 rated, impact resistant, fully insulated, and halogen free plus are suitable for both indoor and outdoor use. The door/lid provides a wide opening angle of 135° and door locks are not supplied with this enclosure.

Features and Benefits.

•Mini wall box enclosure.
•Hinged door/lid.
•Opening angle 135°.
•IP 65 to EN 60529.
•Impact resistant to EN 60079-1.
•Disruptive strength to IEC 60243-1.
•Flame resistant to UL 94 HB.
•Surface resistant to IEC 60093.
•Halogen free.
•Fully insulated.
•Temperature range -40°C to +60°C.
•Indoor and outdoor use.
•Colour is Grey (RAL 7035).

Models Available.

•Stock number 1198401, part number 21.20 25 90, type ABS-K 1, 200 x 250 x 150mm.
•Stock number 1198417, part number 21.25 30 90, type ABS-K 2, 250 x 300 x 170 mm.
•Stock number 1198423, part number 22.20 25 90, type ABS-KT 1, 200 x 250 x 150 mm.

Suitable Accessories.

•Stock number 1198495, front mounting plate (ABS-K 1) (ABS-KT 1).
•Stock number 1198502, front mounting plate (ABS-K 2).
•Stock number 1198530, external mounting bracket, 4 pieces.
•Stock number 2549232, socket wrench, square drive 8 mm.

Typical Applications.

•MCR Technology.
•C & I Equipment.

(IP) Ingress Protection and what it means.

The first number is the protection from solids.
The second number is the protection from liquids.

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's.

Can the enclosure be used outside?

•Yes, IP65 provides total dust protection and is also waterproof from low pressure water.

What is Supplied?

•Enclosure base and door/lid.
•Press-in inserts within the base.
•Inserts assist with mounting internally and externally.
•Door locks are not supplied as standard.

Standards

IP 65 EN 60529, EN 60079-0, IEC 60243-1, VDE 0100, IEC 60093.

ROSE Wall Box, 250mm Height, 300mm Width - 21253090

Keep your control and instrumentation equipment protected with this wall box from ROSE. It's made from durable ABS for resistance to impact and wear. An IP65 rating means the enclosure is dust-tight and resistant to low-pressure water jets, making it suitable for use in both indoor and outdoor applications. A hinged door with a wide opening angle of 135° makes it easy to access your devices. You can fit this unit with a cam lock (119-8445) to protect your components against tampering.

Features & Benefits

• Wide operating temperature range between -40°C and +60°C for use in harsh conditions
• Halogen-free construction means it won't emit toxic fumes in the event of a fire
• Large dimensions of 250 (height) x 300 (width) x 170mm (depth) for storing multiple devices
• Conforms to UL 508A safety standards for industrial control panels

Applications

• Measurement and control technology
• Power plants
• Telecommunications

How do I mount this wall box?

You can mount this wall box with ROSE's front mounting plate (119-8495), aluminium plate (119-8502) or steel bracket (119-8530), giving you versatile installation options.

Data Sheet 21253090
