10 011 206, Rose 300 x 250mm Mounting Plate for use with ABS Mini Cabinet

Rose IP65 Enclosures

These ABS enclosures from Rose have a one-piece body with a solid or transparent door mounted on hinges.

Features and Benefits

One-piece ABS body
Solid door is ABS, transparent door is polycarbonate
All metal parts are protected against corrosion
Light grey, similar to RAL 7035
IP65 protection
Flammability rating of UL94-HB
Solid door version -40°C to +70°C, window version -55°C to +80°C
Full protective insulation to VDE 0100
Halogen free
Door opens 135°

Note

The door lock, 3-sided triangular key, mounting plate, internal front plate and external mounting brackets must be ordered separately.

Standards

EN 60529, EN 50014.

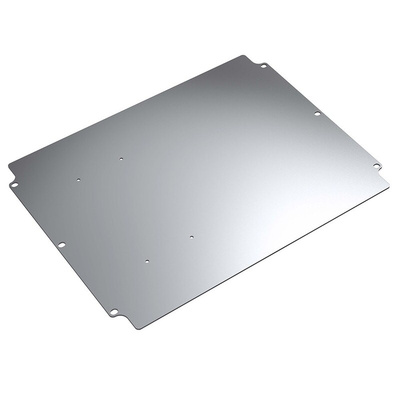

Mounting Plate for ABS IP65 Mini Cabinet Enclosures.

The Rose Mounting Plate is a one piece plate and essential for mounting IP65, ABS Mini Control Cabinet enclosures. The range of Mini ABS Enclosures have a hinged lid and are available as enclosures with an opaque lid or door and with a transparent lid or door. This series of enclosures is especially suited for C & I equipment plus are suitable for indoors and out, impact resistant and cope with temperatures ranging from -40°C to +60°C. This mounting plate ensures the safe and secure mounting of your ABS wall enclosure.

Features and Benefits.

•For use with ABS Mini Cabinet Enclosures.
•Mounting Plate.
•1 Piece.

Suitable IP 65 Mini Cabinet Enclosures Available.

•Stock number 1198401 - Type ABS-K 1, 200 x 250 x 150 mm.
•Stock number 1198417 - Type ABS-K 2, 250 x 300 x 170 mm.
•Stock number 1198423 - Type ABS-KT 1, 200 x 250 x 150 mm.
•Part number 22.25 30 90 – Type ABS-KT 2, 250 x 300 x 170 mm.

Additional Accessories You May require.

•Stock number 1198495, Front Mounting Plate, 250 x 300 mm
•Stock number 1198530, Mounting Bracket (4 Pieces).
•Stock number 2549232, Socket Wrench, Square Drive 8 mm.
•Stock number 1198445, Aluminium Cam Lock, triangular turn bolt fastener 8mm.
