1598ABK, Hammond 1598 Black Flame Retardant ABS Instrument Case, 156.5 x 93.4 x 35mm, Корпус

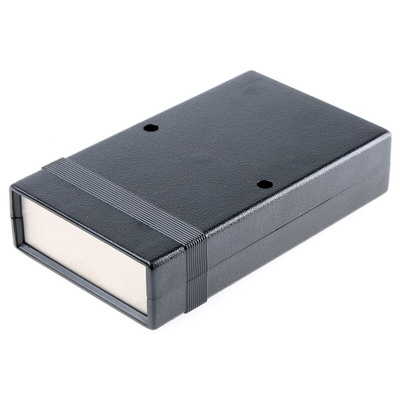

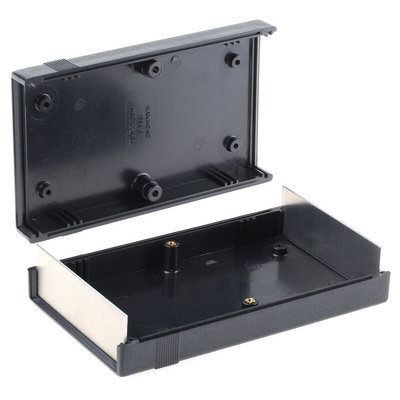

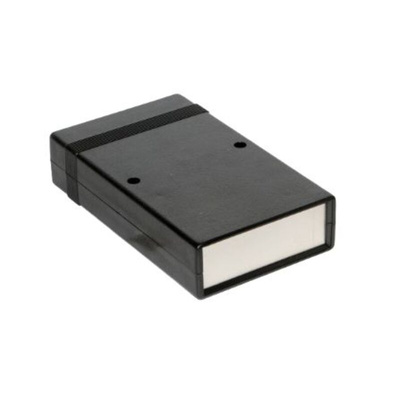

Hammond Instrument Case, 156.5 (L) x 93.4 (W) x 35mm (H), ABS Construction, IP54 Rating - 1598 Series - 1598ABK

Keep your printed circuit boards safe and sound with this instrument case from Hammond. Thanks to its tongue-and-groove design, it's rated IP54, so you can be sure it protects against dust and water sprays from every direction. Moulded PCB standoffs make installing your cards a breeze. As the unit comes with four rubber feet, it stays on an even keel in vibrating applications. Sturdy brass bushings hold the lid screws safely and mean constant dismantling and assembly don't wear the product out.

Features & Benefits

• Insulating ABS body for shock-free handling
• Light weight of 163g puts minimal strain on your mounting surface
• Compact dimensions of 156.5 (L) x 93.4 (W) x 35mm (H) maximise space in your setup
• Aluminium end panels are resistant to corrosion for reliable use in humid environments

Applications

• Monitoring and process control equipment
• Automated manufacturing
• Medical technology

Does this product have any fire safety features?

Yes. It's made from flame-retardant ABS material that self-extinguishes inside 10 seconds in the event of a fire.

What colour is the unit?

It's black, with silver end panels, so looks discreet and professional.

Standards

Material Flamability Rating: UL94-V0

Datasheet

Datasheet

Datasheet - 1598ABK
