SJ 5017 BLACK, 3M Hemispherical PUR Self Adhesive Feet, 19mm diameter x 9.6mm height

Adhesive Bumpers

The 3M range of Bumpon protective moulded shapes are pressure-sensitive, adhesive-backed polyurethane products, offering a high friction coefficient and fast application. The Bumpon range can be used as feet, stops, spacers, and protectors in many applications. These 3M protective bumpon's are made from urethane, a resilient and durable elastomer. The pressure sensitive adhesive is protected with a release liner which allows easy application.

Features and Benefits

• Excellent skid resistance
• Non conductive
• Long aging resiliency – will not crack or harden
• Abrasion resistance
• Resistance to marring and staining

Application

• Feet on the bottom of small appliances, handheld electronic devices, telephones, keyboards, scales, clocks and computers.
• Stops for cabinet doors, lids and drawers.
• Spacers for picture frames to provide alignment and electronic/automotive applications.
• Protectors to prevent damage during shipping.

3M Bumpons can be used anywhere to avoid slamming, scratching, nicking, scuffing, marring, sliding, vibration and noise.

Why choose 3M?

3M are a trusted name in adhesives and workplace safety products. From industrial to office environemnts, 3M combines thier high quality products with RS Components excellent customer service to provide reliable workplace safety solutions when you need it.

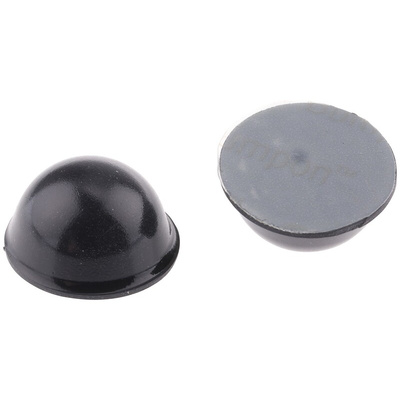

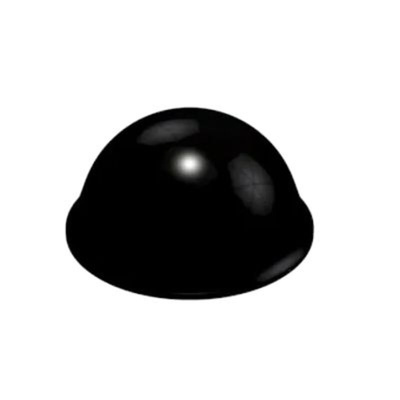

3M Hemispherical Black Self-Adhesive Feet, 9.6mm Height, 19mm Diameter - SJ 5017 BLACK

Apply these self-adhesive feet to the bottom of your machines and devices to hold them in place and reduce vibration. The polyurethane (PUR) material is abrasion-resistant and strong, so it can effectively bear heavy loads without compression or cracking. For ease of installation, simply peel off the translucent polyester film and press the foot in place. You can use these feet in a variety of settings thanks to their broad operating temperature range of -34°C to +66°C. You'll commonly find them stabilising heavy equipment or preventing delicate items from sliding during operation.

• Hemispherical shape effectively absorbs machine sounds and cancels noise• Hardness of 72 Shore M for resistance to tears and cracks• High coefficient of friction to prevent sliding

Applications

• Automotive industry• Circuit boards• Interior design• Glasswork

What kind of adhesive do these feet use?

These feet are backed with a high-tack rubber adhesive that readily sticks to a surface with a press of the fingers. When removed, the adhesive leaves very little residue for minimal clean-up. This type of adhesive is suitable for use on a wide variety of surfaces, including polypropylene, polyethylene and glass.

Self-adhesive Feet

Flexible polyurethane feet suitable for indoor and limited outdoor applications.

Excellent skid resistance with a high coefficient of friction and excellent resistance to moving and staining
Temperature range -34°C to +65°C
Long ageing resiliency and will not crack or harden
Ideal for use on: glass, aluminium, stainless steel, acrylic plastic, polyethylene, polystyrene, ABS, polypropylene and polycarbonate
To ensure maximum adhesion, surfaces must be clean, dry and well unified

Bumpon Protective Products Data Sheet
