3417-6600, 3M 40-Way IDC Connector Socket for Cable Mount, 2-Row, Разъем

3M 3000 Series 2.54 x 2.54 mm Cable Mount IDC Socket Connectors

3000 series cable mount industry standard IDC ribbon cable socket connectors with a 2.54 x 2.54 mm pitch. These IDC cable sockets accept 26 AWG and 28 AWG solid and stranded 1.27 mm pitch flat ribbon cable or discrete wire. The use of IDC contacts eliminates the need for prior cable preparation and stripping and provides a quick and simple interconnection system for mass termination. The contacts are made from beryllium copper which has a high resistance to corrosion, good wear resistance and better electrical conductivity than brass or bronze. The housings of these 3000 series IDC sockets feature dual slot military polarization to aid accurate mating with the header connector. The design of these 3000 series IDC sockets sets the standard for MIL spec and IEC standardization. These 3000 series ribbon cable sockets feature positive locking metal 'J' clips that ensure the cover of the connector is securely retained. The covers have a transfer adhesive on them that holds the cover onto the ribbon cable for precise alignment between the connector and the cables. This feature also results helps with the production of high yield terminations. A pull tab is available separately which is attached to the socket using a strip of adhesive. The pull tab is used to reduce stress on the cable terminations when the socket connector is unplugged from the mated header. A keying plug is also available which is plugged into a socket contact so that the male pin cannot enter it.

Features & Benefits

IDC contacts for quick and easy mass termination
No cable preparation required
Robust and reliable beryllium copper contacts
Positive locking metal ’J’ clips for secure cover retention
Transfer adhesive on covers for precise cable to connector alignment

Product Application Information

These 3000 series wire mount IDC sockets are used in wire to board or internal wiring applications. Applications include factory and automation, test and instrumentation, medical, communications and networking and computers and peripherals

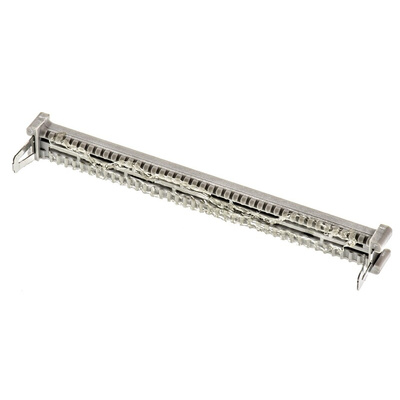

3M Female IDC Connector Socket for Cable Mount, 40 Way, 2 Rows - 3000 Series - 3417-6600

Make quick and easy connections with ribbon cables using this industry-standard female IDC connector from 3M. It clips easily into place to make the connection without the need for stripping or preparation. The connector will accept discrete wires as well as ribbon cable with a pitch of 2.54mm, making it a versatile option for building networked systems. Strong and highly conductive gold-plated copper alloy contacts help relay the signal faithfully, delivering accurate data transmission. An operating temperature range of -55°C to +105°C makes this device suitable for use in demanding industrial environments.

• Covers coated with transfer adhesive hold the ribbon cable to ensure precise alignment
• Locking metal 'J' clips retain the covers securely in place
• Dual-slot military polarisation helps ensure precise alignment

Applications

• Hospital equipment
• Computer networks
• Solid state drives

How do I calculate the pitch of a ribbon cable?

A ribbon cable's pitch is the distance between the individual conductors. To calculate the pitch of a ribbon cable, divide its width by the number of conductors.

3000 Series 0.100 x 0.100 inch Wiremount Socket Dimensional Data Sheet
