3365-25, 3M 3365 Series Flat Ribbon Cable, 25-Way, 1.27mm Pitch, 30m Length, Ленточный кабель

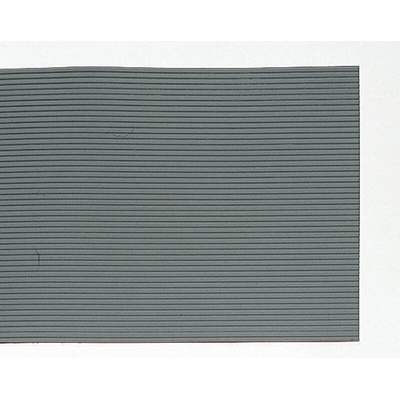

0.05in (1.27mm) Pitch Ribbon Cables-Type 3365

From 3M, the 3365 series of grey ribbon cable, 28 awg wire on 0.05in. centres, permits mass termination to a broad line of 3M IDC connectors. The 7x36 tinned stranded copper wire provides flexibility and extended product life. First conductor is identified by a red leading edge.

Features and Benefits

• Insulation resistance >1x10¹⁰ Ω/3m
• Suitable for mass termination
• Highly flexible

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

3M Ribbon Cable, 30m Length, 25 Way - 3365 Series - 3365-25

Quickly and easily connect components, equipment or devices with this flat ribbon cable from 3M. It has multiple conductors to give you 25 ways to connect it up. This means you can use it for mass termination with IDC (insulation-displacement contact) sockets to save time and effort. Each conductor is stranded with seven wires for maximum versatility and fewer breakages. A PVC (polyvinyl chloride) jacket insulates the wires and provides a protective coating keeping it flexible, efficient and durable.

• Red leading edge to let you know which is the first conductor and help you wire it correctly
• Length of 30m so you have plenty of cable to work with
• Insulation resistance of >
1x10¹⁰ Ω/3m for minimal interference and signal loss as well as high efficiency
• Wide operating temperature between -20°C and +105°C for use in demanding environments

Applications

• Electronics manufacturing and repair
• Robotics
• Computing and telecommunications
• Testing and measuring equipment

Is this ribbon cable zippable?

Yes, this ribbon cable is zippable, letting you use it to branch out and customise your connections.

Approvals

UL; CSA

Ribbon Cable Information

Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.

Round conductor flat cable 3365 series
