3485-2300F, 3M 3485 Series PBT D Sub Backshell, 25 Way

3M Flat Cable Plastic Backshells

From 3M, this plastic D-SUB connector case is a hard case designed to house D-Sub connector components. It is robust and light weight, and an integral part of the D connector design.

• For use with flat ribbon cable D connectors, see stock nos. 121-0040 and 121-0107
• For suitable jackscrews see RS stock No. 120-8407

Features and Benefits

• Light weight
• Robust
• Easy construction

Applications

This D-Sub connector is designed to be used with flat ribbon cable and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

What are D-Sub Connectors Used For?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

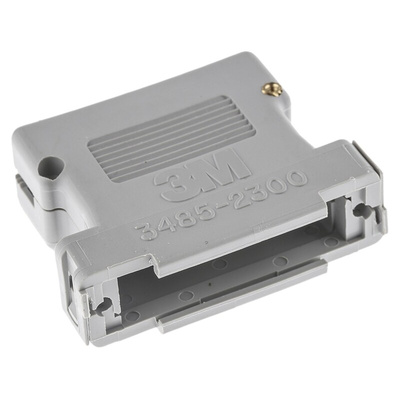

3M D-Sub Backshell, 25 Way, PBT - 3485 Series - 3485-2300F

Protect your connections with this D-sub (D-subminiature) backshell from 3M. Its housing is made from a robust PBT (polybutylene terephthalate) material, so it's highly durable and heat-resistant. As it can withstand temperatures ranging from -55°C to +105°C, the unit's suitable for use in harsh industrial environments. You can attach the two halves together using screws and without any specialised tools. This makes it simple to assemble and saves you time and effort during installation.

• UL94 V-0 (Underwriters' Laboratories) flammability rating means it stops burning within 10 seconds for safety in the event of a fire
• Ribbed casing for a secure grip when plugging in and disconnecting
• Brass insert is corrosion-resistant for long-lasting use in harsh environments
• Comes with two extra holes to give you the option of securing it to a panel with jack screws

Applications

• Hospital equipment
• Transport industry networks
• Industrial automation and robotics
• Computing and data networks

What type of cables can I use this D-sub backshell with?

This D-sub backshell is designed for use with flat ribbon cables commonly used in data transmission applications.

3485 Series D Sub Connectors Data Sheet
