3659-20, 3M 3659 Series Round Ribbon Cable, 20-Way, 1.27mm Pitch, 30m Length, Кабель

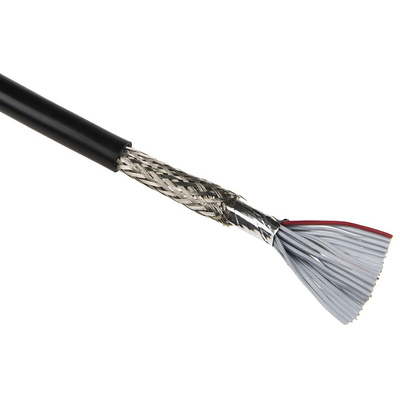

3M Screened Round 1·27mm Pitch Ribbon Cable - Type 3659

From 3M, this 3659 screened ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Featured and Benefits

• Stranded tinned copper conductors with black
• PVC insulation
• Double screened with aluminised polyester tape & tinned copper braid
• Continuous split/bond repeat allows for mass termination
• UL AWM style 20267

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. round ribbon cables are more flexible than flat ribbon, and provide space efficient solutions to high data transmission. Screened ribbon cabling provides protection against EMI and so is ideal for sensitive equipment in areas where electromagnetic interference is a possibility. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

Approvals

UL Listed

3M Ribbon Cable, 28AWG, Screened - 3659 Series - 3659-20

For reliable signal transmission between your computer and peripheral devices, choose this round ribbon cable from 3M. It's unterminated at both ends, giving you the freedom to link it with an IDC connector that matches your system specifications. The primary cable can be zipped for use in discrete or branch terminations. Its tough PVC jacket keeps it safe from wear and impact, so you can rest assured it handles whatever harsh industrial environments can throw at it.

Features & Benefits

• Thick aluminium/polyester film foil shielding prevents EMI for noiseless signal transmission
• Wide operating temperature range between -20°C to +80°C for use in demanding conditions
• Low capacitance of 90.88pF/m for high-integrity signals

Applications

• Desktop and laptop computers
• Communications networks
• Music studios

How long is this ribbon cable?

The cable's 30m long and is easy to cut down, so there's lots of it to go around for numerous jobs.

Approvals

UL E 42769/20267CL2

UL E118773
