3659-34, 3M Round Ribbon Cable, 34-Way, 1.27mm Pitch, 30m Length, IDC to, Кабель

3M Screened Round 1·27mm Pitch Ribbon Cable - Type 3659

From 3M, this 3659 screened ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Featured and Benefits

• Stranded tinned copper conductors with black
• PVC insulation

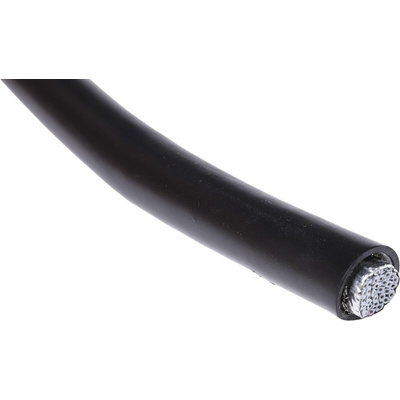

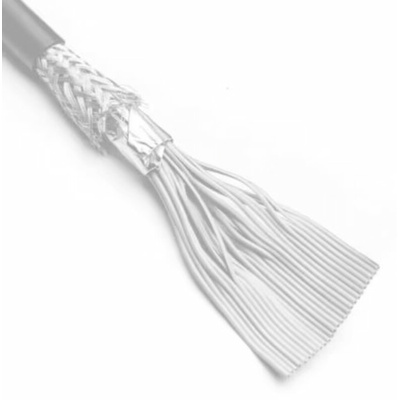

• Double screened with aluminised polyester tape & tinned copper braid
• Continuous split/bond repeat allows for mass termination
• UL AWM style 20267

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. round ribbon cables are more flexible than flat ribbon, and provide space efficient solutions to high data transmission. Screened ribbon cabling provides protection against EMI and so is ideal for sensitive equipment in areas where electromagnetic interference is a possibility. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

Approvals

UL Listed

3M Ribbon Cable, PVC Sheath, 7-Strand Type - 3659 Series - 3659-34

Searching for a safe way to link electronic components? Turn to this ribbon cable from 3M for a connection you can count on. It has 34 tinned copper conductors, each made of seven wire strands, for reliable conductivity. A continuous split/bond repeat gives you the flexibility for mass termination. The wires stay protected for the long haul thanks to an insulated PVC sheath. Dual shielding guards against electromagnetic interference, so you get smooth performance in noisy conditions.

Features & Benefits

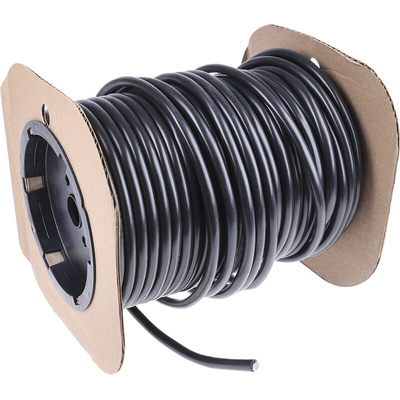

• 30m length for complex installations or lots of smaller jobs
• Handles demanding environments, thanks to an operating temperature range between -20°C and +80°C
• Primary wire is colour-coded with a red leading edge for error-free wiring
• Round construction makes routing a breeze

Applications

• Consumer electronics
• Robotics engineering
• Measuring equipment

Can I zip this ribbon cable?

Yes, the cable is zippable. This means you can customise your connections by branching out the cable conductors as needed.

Approvals

UL E 42769/20267CL2

3659 Series Round/Shielded/Jacketed Cable Data Sheet

UL E118773

Cable Selection Guide
