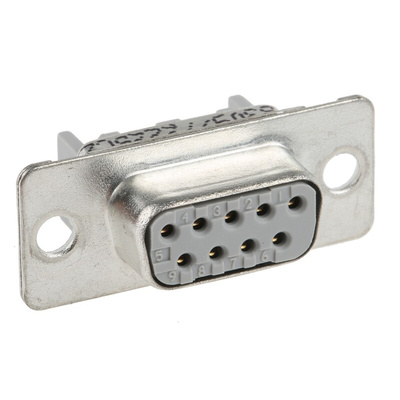

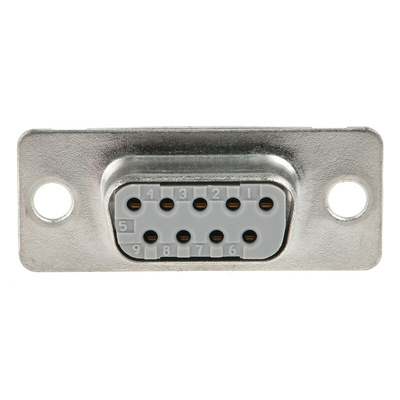

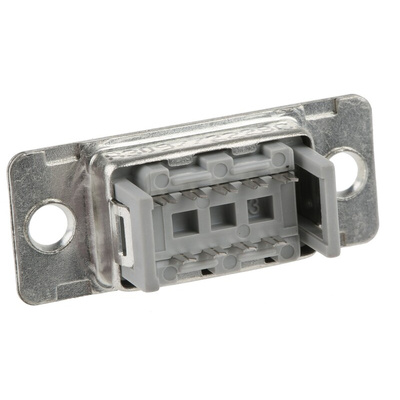

8309-6009, 3M 8300 9 Way Right Angle Cable Mount D-sub Connector Socket, 2.74mm Pitch, Разъем

Class II D Metal Shell Connectors

From 3M, these metal shell d-sub conenctors are ideal where heavy duty conenctions are required in challenging environments.

Features and Benefits

• Cable mounting D connectors designed for Class II performance
• Tin plated with dimples for excellent grounding
• Robust metal shell

For Use With:

• For tooling see stock nos. 120-6962 and 192-7748
• These connectors are particularly suitable for use with the 3M colour-coded ribbon cable stock no. 120-8485 (example, 9 pole)
• Strain Relief has to be ordered separately see \n
• 121-2816 is a strain relief for 9 way d-sub connectors
\n• 121-2822 is a strain relief for 15 way d-sub connectors\n
• 121-2838 is a strain relief for 25 way d-sub connectors\n
• 121-2844 is a strain relief for 37 way d-sub connectors
\n• 121-2850 is a strain relief for 50 way d-sub connectors

What are D-Sub Connectors Used For?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Note

XXXX-XXX0 part numbers have a Ø3.05 mm flange hole
XXXX-XXX5 part numbers have a #4-40 UNC threaded flange.
XXXX-XXX9 part numbers have a rivet crimp flange

3M Right Angle Mount D-Sub Connector Socket, 9 Way, 2.74mm Pitch - 8300 Series - 8309-6009

Need a versatile and robust solution to establish connections in your industrial applications? This tough 3M D-sub connector helps you to make internal and external heavy-duty connections in a wide variety of electronic devices. Use it to align and stabilise your connection to deliver reliable data and power signals. The metal shield safeguards cables against electromagnetic interference (EMI) to prevent damage to components. By using this D-sub connector, you can protect your connections against mechanical and environmental strains.

• Gold-over-nickel contact plating resists corrosion, for use in humid environments• Copper-alloy contact material with high thermal and electrical conductivity to ensure reliable relay of signals• Wide operating temperature range between -55°C and +105°C for use in demanding industrial environments

Applications

• Medical equipment• Server rooms• Industrial computer systems

What's the purpose of tin plating and dimples on the metal D-sub connector?

The dimpled tin plating on this 3M D-sub connector provides excellent grounding. This is important for the protection of components in the event of a power surge.

Datasheet
