8337-6009, 3M 8300 37 Way Right Angle Cable Mount D-sub Connector Socket, 2.74mm Pitch, Разъем

Class II D Metal Shell Connectors

From 3M, these metal shell d-sub conenctors are ideal where heavy duty conenctions are required in challenging environments.

Features and Benefits

• Cable mounting D connectors designed for Class II performance
• Tin plated with dimples for excellent grounding
• Robust metal shell

For Use With:

• For tooling see stock nos. 120-6962 and 192-7748
• These connectors are particularly suitable for use with the 3M colour-coded ribbon cable stock no. 120-8485 (example, 9 pole)
• Strain Relief has to be ordered separately see \n
• 121-2816 is a strain relief for 9 way d-sub connectors
\n• 121-2822 is a strain relief for 15 way d-sub connectors\n
• 121-2838 is a strain relief for 25 way d-sub connectors\n
• 121-2844 is a strain relief for 37 way d-sub connectors
\n• 121-2850 is a strain relief for 50 way d-sub connectors

What are D-Sub Connectors Used For?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Note

XXXX-XXX0 part numbers have a Ø3.05 mm flange hole
XXXX-XXX5 part numbers have a #4-40 UNC threaded flange.
XXXX-XXX9 part numbers have a rivet crimp flange

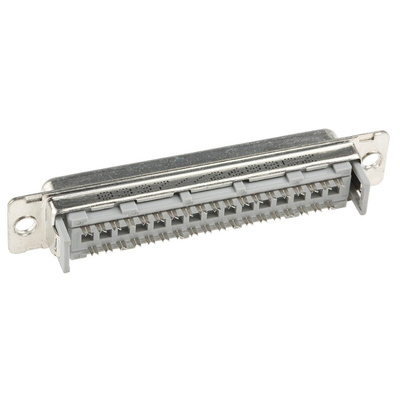

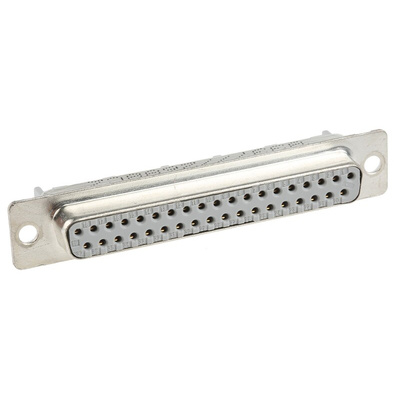

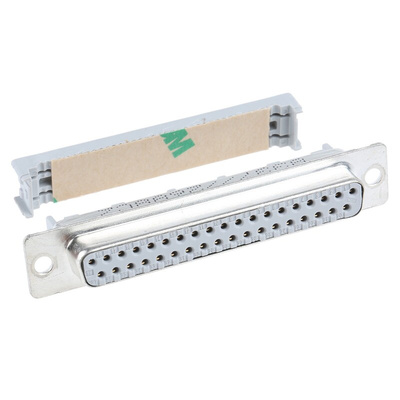

3M D-Sub Connector, 1A Current Rating, IDC Connections - 8300 Series - 8337-6009

Looking for a circuit adapter with no weak points? This D-sub connector socket from 3M goes the distance. Its IDC connectors cold-weld to conductors to form a join that's air-tight and reliable. Rugged metal strain relief hooks straight into the unit's shell to minimise the chance of wires breaking when bent. A pitch of 2.74mm gives the fastener a low profile, so it helps to maximise your board-packing efficiency.

Features & Benefits

• Flame-retardant, so there's minimal risk of it contributing towards the spread of fire
• Wide operating temperature range between -55°C and +105°C for compatibility with demanding settings
• PBT insulation has high chemical resistance and also protects against electric shocks to boost safety

Applications

• Computer systems
• Monitoring and access control
• Transportation
• Hospitals

What's the connector's housing made of?

The socket's housing is made from durable and corrosion-resistant steel.
