3659-50, 3M 3659 Series Round Ribbon Cable, 50-Way, 1.27mm Pitch, 30m Length, Кабель

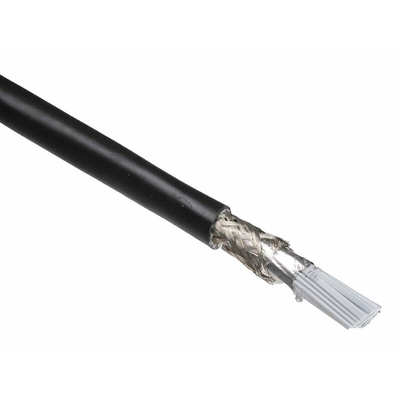

3M Screened Round 1·27mm Pitch Ribbon Cable - Type 3659

From 3M, this 3659 screened ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Featured and Benefits

• Stranded tinned copper conductors with black
• PVC insulation
• Double screened with aluminised polyester tape & tinned copper braid
• Continuous split/bond repeat allows for mass termination
• UL AWM style 20267

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. round ribbon cables are more flexible than flat ribbon, and provide space efficient solutions to high data transmission. Screened ribbon cabling provides protection against EMI and so is ideal for sensitive equipment in areas where electromagnetic interference is a possibility. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

Approvals

UL Listed

3M Ribbon Cable, 0.35μH/m Inductance, 1.27mm Pitch - 3659 Series - 3659-50

Dreaming of seamless signal transmission between your computers and peripheral devices? Let this ribbon cable from 3M make it a reality. Packed with 50 conductors, it makes multi-circuit control a breeze, eliminating the need for excess wiring. The 28AWG wires are encased in a durable PVC jacket that provides protection from impact and wear, so it's a tough option for use in harsh environments.

Features & Benefits

• Double screening with aluminium/polyester film foil and tinned copper braid prevents interference for noiseless transmission
• Broad operating temperature range between -20°C to +80°C for use in challenging settings
• Length of 30m provides enough cabling for lots of jobs

Applications

• Measurement and instrumentation
• Plant automation

Is this cable flame-resistant?

Yes, it stops burning in 15 seconds or less in the event of a fire, so it can help reduce the spread of flames and boost workplace safety.

Approvals

UL E 42769/20267CL2

UL E118773
