3473-6000, 3M 10-Way IDC Connector Socket for Cable Mount, 2-Row, Разъем

3M 3000 Series 2.54 x 2.54 mm Cable Mount IDC Socket Connectors

3000 series cable mount industry standard IDC ribbon cable socket connectors with a 2.54 x 2.54 mm pitch. These IDC cable sockets accept 26 AWG and 28 AWG solid and stranded 1.27 mm pitch flat ribbon cable or discrete wire. The use of IDC contacts eliminates the need for prior cable preparation and stripping and provides a quick and simple interconnection system for mass termination. The contacts are made from beryllium copper which has a high resistance to corrosion, good wear resistance and better electrical conductivity than brass or bronze. The housings of these 3000 series IDC sockets feature dual slot military polarization to aid accurate mating with the header connector. The design of these 3000 series IDC sockets sets the standard for MIL spec and IEC standardization. These 3000 series ribbon cable sockets feature positive locking metal 'J' clips that ensure the cover of the connector is securely retained. The covers have a transfer adhesive on them that holds the cover onto the ribbon cable for precise alignment between the connector and the cables. This feature also results helps with the production of high yield terminations. A pull tab is available separately which is attached to the socket using a strip of adhesive. The pull tab is used to reduce stress on the cable terminations when the socket connector is unplugged from the mated header. A keying plug is also available which is plugged into a socket contact so that the male pin cannot enter it.

Features & Benefits

IDC contacts for quick and easy mass termination
No cable preparation required
Robust and reliable beryllium copper contacts
Positive locking metal ’J’ clips for secure cover retention
Transfer adhesive on covers for precise cable to connector alignment

Product Application Information

These 3000 series wire mount IDC sockets are used in wire to board or internal wiring applications. Applications include factory and automation, test and instrumentation, medical, communications and networking and computers and peripherals

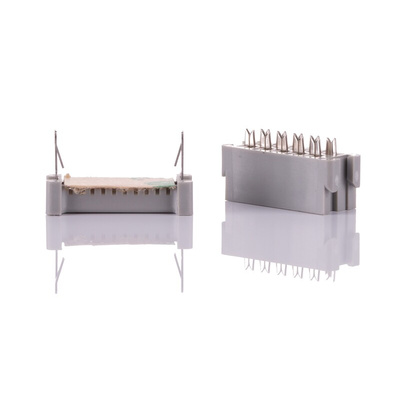

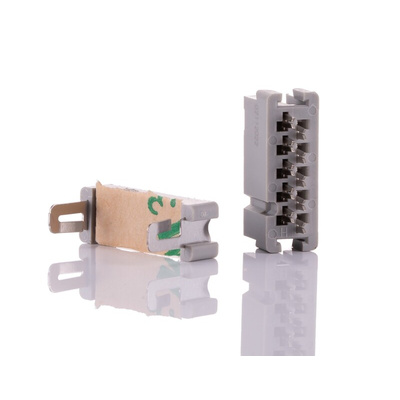

3M IDC Connector, Right-Angled Orientation, 2.54mm Pitch - 3000 Series - 3473-6000

Connect your ribbon cables or discrete wires with ease using this 10-way IDC polarised socket from 3M. The IDC connectors allow for quick installation as you won't need to strip any wires. A right-angled orientation means this cable-mounting unit saves space in your cable assembly. The PBT housing offers high heat resistance, giving it an operating temperature range of -55°C to +105°C and making it suitable for use in harsh environments.

• Gold-over-nickel-plated phosphor bronze contacts offer high conductivity and faithful data transmission
• Dual-slot military polarisation helps you mate it accurately with the header connector
• Positive-locking metal J clips retain the cover securely

Applications

• Computer networks
• SSDs
• Laptops

What's an IDC connector?

Rather than attaching to stripped wires, an IDC connector uses a blade to pierce the insulation on a cable and make the electrical connection to the conductor. This simplifies and speeds up installation.

3000 Series 2.54x2.54mm IDC Ribbon Cable Sockets

Line Drawing - 3000 Series
