3385-6000, 3M 14-Way IDC Connector Socket for Cable Mount, 2-Row, Разъем

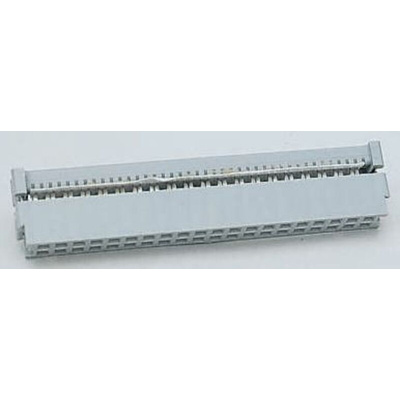

3M 3000 Series 2.54 x 2.54 mm Cable Mount IDC Socket Connectors

3000 series cable mount industry standard IDC ribbon cable socket connectors with a 2.54 x 2.54 mm pitch. These IDC cable sockets accept 26 AWG and 28 AWG solid and stranded 1.27 mm pitch flat ribbon cable or discrete wire. The use of IDC contacts eliminates the need for prior cable preparation and stripping and provides a quick and simple interconnection system for mass termination. The contacts are made from beryllium copper which has a high resistance to corrosion, good wear resistance and better electrical conductivity than brass or bronze. The housings of these 3000 series IDC sockets feature dual slot military polarization to aid accurate mating with the header connector. The design of these 3000 series IDC sockets sets the standard for MIL spec and IEC standardization. These 3000 series ribbon cable sockets feature positive locking metal 'J' clips that ensure the cover of the connector is securely retained. The covers have a transfer adhesive on them that holds the cover onto the ribbon cable for precise alignment between the connector and the cables. This feature also results helps with the production of high yield terminations. A pull tab is available separately which is attached to the socket using a strip of adhesive. The pull tab is used to reduce stress on the cable terminations when the socket connector is unplugged from the mated header. A keying plug is also available which is plugged into a socket contact so that the male pin cannot enter it.

Features & Benefits

IDC contacts for quick and easy mass termination
No cable preparation required
Robust and reliable beryllium copper contacts
Positive locking metal ’J’ clips for secure cover retention
Transfer adhesive on covers for precise cable to connector alignment

Product Application Information

These 3000 series wire mount IDC sockets are used in wire to board or internal wiring applications. Applications include factory and automation, test and instrumentation, medical, communications and networking and computers and peripherals

3M IDC Connector Socket, 14 Way, 2 Rows - 3000 Series - 3385-6000

Choose this 14-way female IDC (insulation-displacement contact) connector socket from 3M to make ribbon cable connections quickly and easily with no need to strip wires. The polybutylene terephthalate (PBT) housing offers excellent electrical insulation as well as temperature resistance. It gives the socket an operating temperature range of -55°C to +105°C, making it suitable for a wide range of industrial environments. The right-angled body orientation helps save space when building your system, while the 2.54mm pitch is ideal for industry-standard 1.27mm pitch ribbon cable.

• Gold-over-nickel-plated copper contacts ensure excellent conductivity for accurate data transmission
• Transfer adhesive on the covers helps align the cables precisely
• Positive locking metal 'J' clips ensure the connector is securely retained

Applications

• Wire to board applications
• Internal wiring systems
• Telecommunications
• Instrumentation

What does 'pitch' mean on a ribbon cable?

When talking about ribbon cables, 'pitch' refers to the distance between the individual wires. To find the pitch of a cable, measure the distance between the two external wires and divide it by the number of wires.

3000 Series 0.100 x 0.100 inch Wiremount Socket Dimensional Data Sheet
