3659-37, 3M 3659 Series Round Ribbon Cable, 37-Way, 1.27mm Pitch, 30m Length, Кабель

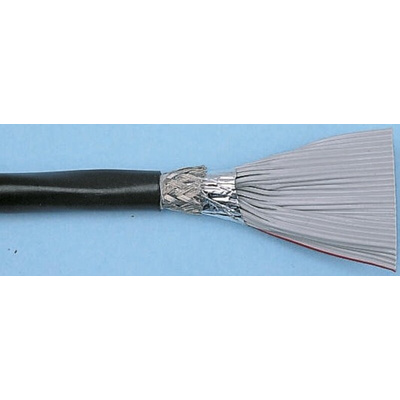

3M Screened Round 1·27mm Pitch Ribbon Cable - Type 3659

From 3M, this 3659 screened ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Featured and Benefits

• Stranded tinned copper conductors with black
• PVC insulation
• Double screened with aluminised polyester tape & tinned copper braid
• Continuous split/bond repeat allows for mass termination
• UL AWM style 20267

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. round ribbon cables are more flexible than flat ribbon, and provide space efficient solutions to high data transmission. Screened ribbon cabling provides protection against EMI and so is ideal for sensitive equipment in areas where electromagnetic interference is a possibility. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

Approvals

UL Listed

3M Ribbon Cable, Double Screened, 90.88pF/m Capacitance - 3659 Series - 3659-37

Looking for a dependable signal carrier for your computers and peripheral equipment? Choose this round ribbon cable from 3M. It's designed for termination with IDC connectors, which cuts out the need to strip wires before connecting, saving time and effort. As it comes unterminated, you can choose an adapter that suits your system design needs. Aluminium/polyester film foil and tinned copper braids provide reliable dual shielding from EMI so you're assured of noiseless signal transmission.

Features & Benefits

• Cable length of 30m gives you enough for numerous jobs
• Pitch of 1.27mm prevents the wires from touching each other, reducing the risk of short circuits
• PVC jacket resists wear and impact, for safe use in harsh environments

Applications

• Consumer electronics
• Measurement and instrumentation

What's the advantage of using a round ribbon cable?

A round ribbon cable is easier to route, as it can bend around corners and takes up less space per number of connectors it holds.

Approvals

UL E 42769/20267CL2

UL E118773
