WTB8-P2231, Sick Background Suppression Photoelectric Sensor, Block Sensor, 30 mm → 300 mm Detection Range, Фотоэлектрический датчик

W8 Series Photoelectric Sensors

Sick W8 series high-quality, miniature photoelectric sensors are specially designed for close-range applications. Autocollimation, background suppression, and high switching frequencies of 2 kHz make these sensors ideal for a broad range of applications. The housing is designed with M3 threaded mounting holes that provide easy and secure mounting.

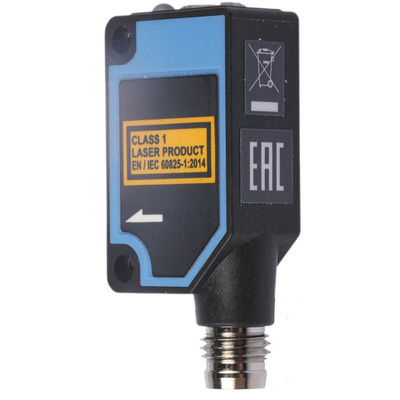

Sick Photoelectric Sensor - WTB8-P2231

Designed to detect and measure physical objects or quantities through emitting a field or beam of electromagnetic radiation, an object is detected through measuring alteration in the return. Sick's photoelectric sensor forms part of the Sick's W8 series, providing a high-quality, top-performing miniature sensor.

Features & Benefits

• The detection principle is photoelectric proximity and background suppression
• Dimensions of the sensor are W11mm x H31mm x D20mm
• Features a rectangular housing design
• LED light source
• Wavelength is 650 nm
• The supply voltage is 10V DC - 30V DC
• Light and dark switching modes
• Weighs just 10g
• The enclosure has an IP rating of IP67, this means that the enclosure is protected against dust and is completely dust-tight. This rating also means that the enclosure has moisture protection against full immersion for up to 30 minutes at depths between 15cm and 1m
• Housing material is constructed of hardwearing, robust plastic material

Note

For retro-reflective sensors a suitable reflector is required.
For PL80A, PL30A & C110 reflectors see stock nos. 265-2776, 265-2760 & 265-2748 respectively.
