3448-8D15A, 3M Strain Relief Clip For Use With 8300 Series

3M D Connector Strain Relief Clips

Stainless steel cable strain reliefs for use in conjunction with 3M Class II D connectors. Snap-fit onto the connector after cable assembly

Available in this range:

• 121-2816 is a strain relief for 9 way d-sub connectors
• 121-2822 is a strain relief for 15 way d-sub connectors
• 121-2838 is a strain relief for 25 way d-sub connectors
• 121-2844 is a strain relief for 37 way d-sub connectors
• 121-2850 is a strain relief for 50 way d-sub connectors

What are D-Sub Connectors Used For?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

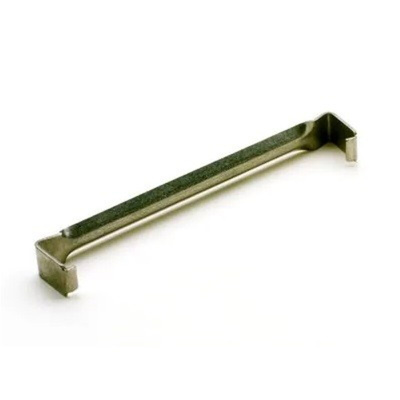

3M Strain Relief Clip For Use With 15-Way 8300 Series D-Sub Connectors, Stainless Steel - 3448-8D15A

If you want to get the maximum service life out of your 15-way D-sub (D-subminiature) connector, choose this strain relief clip from 3M. It's made from tough and corrosion-resistant stainless steel and it clips easily into place to take the strain off your electrical connections, meaning they'll stand up to far more wear and tear. The clip is a simple and effective way to extend the life expectancy of your cable assemblies.

• One-piece construction offers strength and durability
• For use with 3M's 8300 series Class II D connectors

Applications

• Hospital equipment
• Industrial computers
• Office computer systems

What's a D-sub connector?

D-sub connectors were invented in the 1950s and are named after their D-shaped metal shield. D-subs became the standard connector for older computer systems and are still found in some modern computers. They're also found in audio systems.

Do I need strain relief?

Electrical connections will function fine at first without strain relief, but they can work loose over time, particularly when the connection is subjected to a lot of movement or vibration. By installing strain relief, you can guard against this.

Datasheet - D Sub Socket Connector 8300 Series
