200528-0170, Molex, Easy-On, 200528 1mm Pitch 17 Way Right Angle Male FPC Connector, ZIF Bottom Contact, Разъем

Molex Easy-On 1.0mm FFC/FPC Connectors with Double-Bottom Contacts, 200528 Series

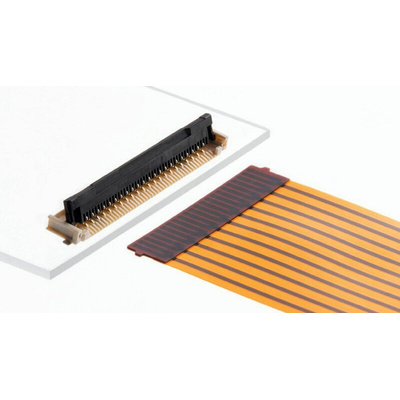

Easy-On 1.0 mm FFC/FPC connectors with double-bottom contacts and a compact, low profile design with a mating height of just 1.90 mm. The contact design of these Easy-On 1.0 mm FFC/FPC connectors features 2 lower contacts per circuit. This double bottom contact terminal design removes dust and contaminants resulting in a clean mating interface and high contact reliability. This design also provides double the contacts per circuit. The actuators of these Easy-On 1.0 mm FFC/FPC connectors are pre-assembled covers that secure the connection between the FFC/FPC and the connector terminals. The housings of these FFC/FPC connectors feature a cable ear-tab locking feature with indents in them in which accept the FPC tabs. This feature provides proper cable seating and alignment, high retention force and easy actuation. These Easy-On 1.0 mm FFC/FPC connectors also have Zero insertion force for easy cable insertion and for allowing repeat cycling with minimum wear. The top of the housings also feature a vacuum pick and place area for easy board assembly and cost savings. Robust solder tabs on these SMT FFC/FPC connectors offer secure PCB retention and strain relief for solder joints. These Easy-On 1.0 mm FFC/FPC connectors are available in a wide range of circuit sizes for design flexibility.

Features and Benefits

Double bottom contacts for clean mating interface and excellent contact reliability
Cable ear-tab locking feature for cable alignment and high retention force
Compact low profile design with 1.9 mm mated height
Zero Insertion Force for easy cable insertion, repeat cycling with minimum wear
Solder tabs for secure PCB retention
Vacuum pick and place area on top of housing for cost saving easy board assembly

Applications

With their compact size these Easy-On 1.0 mm FFC/FPC connectors are suitable for tight packaging applications. Applications include automotive display audio and car navigation and consumer products such as flat panel TVs, portable games and personal navigation equipment. Other applications include data-communications including optical disk drives, tablet and Notebook PCs, printers and copiers.

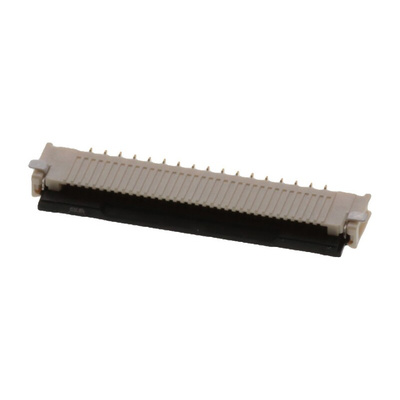

Molex 17-Way Right-Angle Male FPC Connector, 50V AC/DC, 1mm Pitch - Easy-On Series - 200528-0170

This FPC (flexible printed circuit) connector from Molex makes wire-to-board connections on printed circuit boards easier and faster. It's a 17-way adapter made with a liquid-crystal polymer housing material that provides both durability and flexibility. Double-bottom contact terminals remove dust and contaminants for superior electrical reliability. This compact device is designed to fit into small enclosures, and its low-profile construction means it won't get in the way of the components in your circuit.

Features & Benefits

• Cable ear-tab locking feature for cable alignment and high retention force
• Surface mounting style for easy and time-saving installation
• Phosphor-bronze contact material for a reliable connection
• ZIF (zero insertion force) bottom contact for easy cable insertion
• Wide operating temperature range of -40°C to +105°C for use in demanding conditions

Applications

• Printers and copiers
• Display audio
• Flat-screen televisions
