104239-1430, Molex 6 (Nano SD), 8 (microSD) Way Push/Pull MicroSD, Nano SIM Memory Card Connector With Solder Termination, Разъем

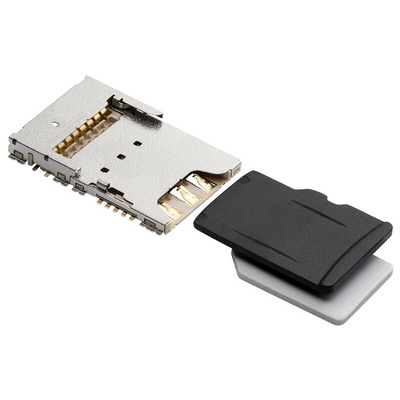

Molex micro-SD/nano-SIM Pull-Lever Type Combo Memory Card Connector

micro-SD/nano-SIM Pull-Lever type combo memory card connector with a space saving stacking-type design incorporating two card formats in a single unit. With a compact size, small footprint and low profile height of 2.05 mm this micro-SD/nano-SIM memory card combo connector provides valuable space saving on the PCB. The micro-SD card can be both inserted and withdrawn freely without the need to turn off power or remove the battery. This feature avoids the inconvenience of calls and messages being missed on mobile devices. The connector has card polarization features to prevent incorrect insertion and a pull lever type mechanism for easy card ejection. Anti-stubbing contacts ensure smooth card insertion and withdrawal and prevent contact damage. A card-detect switch detects the presence of the card. PCB hold-down points on this micro-SD/nano-SIM memory card connector ensure a secure retention to the PCB.

Features and Benefits

2 card formats in single unit
Stacking design with small foot print and low profile for PCB space saving
Free insertion and withdrawal of micro-SD card, no need to reboot
Pull-Lever ejection mechanism
Card polarization features to prevent misinsertion
Anti-stubbing contacts for smooth card insertion and withdrawal
PCB hold-down posts for secure retention to PCB
Card-detect switch

Applications

These micro-SD/nano-SIM pull lever type combo memory card connectors provide easy memory card access for various mobile application needs. Applications include mobile equipment, smartphones and tablet PCs

Molex Memory Card Connector, Pull-Lever Type, Micro SD / Nano SIM Combo - 104239 Series - 104239-1430

Use this connector from Molex to attach a memory card to your printed circuit board (PCB). The connector has a stacked design with spaces for both a micro-SD (secure digital) card and a nano-SIM (subscriber identity module) card to save space and give you flexibility in your PCB setup. Its compact dimensions of 12.2 (length) x 2.05 (width) x 17.9mm (depth) also make it ideal for boards where space is limited. The pull-lever ejection mechanism makes it simple to remove the card without needing to turn off power to your device, reducing downtime and enhancing productivity. The contacts are made of copper alloy with gold-over-palladium-nickel plating for good conductivity and resistance to corrosion, ensuring a reliable, long-lasting connection.

• Polarised connector ports to prevent damage caused by incorrect card insertion
• Anti-stubbing contacts allow for smooth card insertion and withdrawal
• Hold-down posts ensure secure surface mounting on a PCB
• Liquid-crystal polymer housing for resistance to high temperatures and chemicals

Applications

• Mobile equipment
• Computing applications

Can this connector withstand extreme temperatures?

This connector has a broad operating temperature range of -40°C to +85°C for use in demanding applications.

Memory Card Connectors

Memory Card Combo Connectors (Brochure)

microSD/nano-SIM Combo Pull-Lever Type (Drawing)
