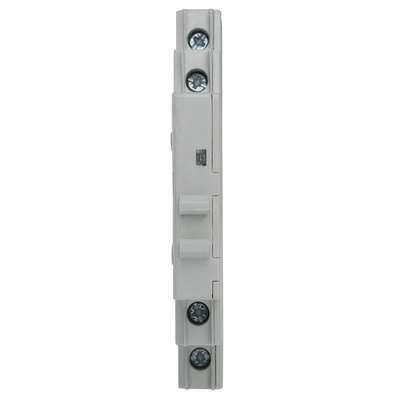

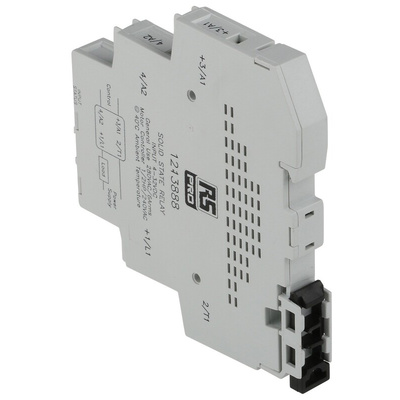

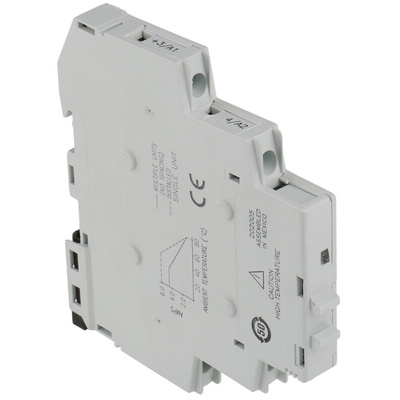

RS PRO Solid State Interface Relay, 32 V dc Control, 6 A Load, DIN Rail Mount, Реле

RS PRO 6 A SP Solid State Relay, DIN Rail, 280 V AC Maximum Load

This solid-state relay from RS PRO will quickly switch circuits on and off. It's much faster than a conventional electro-mechanical relay, so it's generally used in industrial applications where speed's important. This relay has no moving parts to wear out, so you'll have no issues with contact bounce.

It functions with both AC or DC voltage ratings. The component carries a maximum load current of 6 A (amps). Because it fits onto a standard 35 mm DIN rail, it's easy to install. There's an LED status indicator to tell you when power is running.

Like all of our RS PRO collection, these units are tested by engineers for reliability and consistency. It has compact dimensions of (H) 87.6 mm, (W) 11 mm and (D) 83.7 mm, which means it's useful when space is at a premium. This product is RoHS compliant for minimal hazardous materials.

Features and Benefits

• Solid-state relay
• DIN (Deutsches Institut für Normung, or the German Institute of Standardisation) rail mounted
• Contact configuration of SP (single pole)
• Screw terminals
• LED indicator
• Capacitance of 10 pF
• Dimensions of (H) 87.6 mm x (W) 11 mm x (D) 83.7 mm
• Load voltage range of 24 to 280 V AC
• Control voltage range of 4 to 32 V DC
• Minimum control voltage of 4 V DC
• Maximum control voltage of 280 V AC
• Off-state leakage current of 0.1 mA rms
• Maximum load current of 6 A
• Operates from -30°C to +80°C
• RoHS compliant for minimal hazardous materials
• Handled and packed in conditions that meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards
